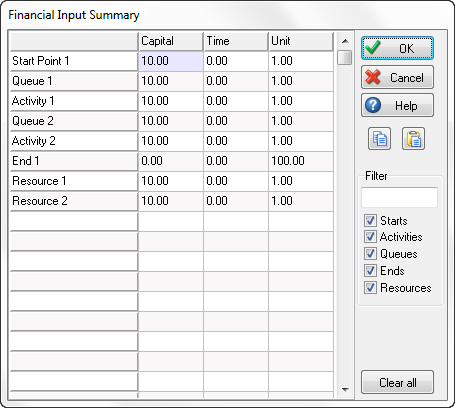

Financial Input Summary

This feature is available only in SIMUL8 2016 and later.

The Financial Input Summary will allow you to change the financial inputs for all simulation objects in your simulation.

Access the Financial Input Summary via the Data and Rules Tab on the ribbon.



The left most column lists all relevant simulation objects in the simulation. There are additional columns to enter the financials for an object's Capital, Time, and Unit costs.
Please Note: the unit value for End Points is revenue, and not a cost.

Use the Filter input on the right side of the dialog to search for specific object names containing text or numerical strings.

The checkboxes on the right side of the dialog will hide or display the respective types of objects in the Financial Input Summary.

Use the “Clear All” button to set all cost and revenue values on all objects to zero.

The currency symbol is set in the simulation's preferences.
