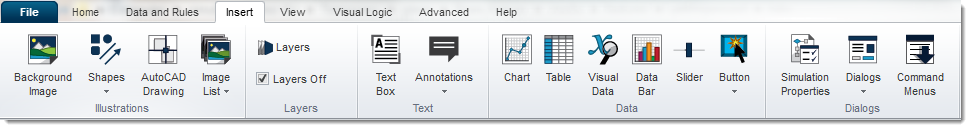

Insert Tab

Background Image
Add an image as a background.
More information

Draw a shape onscreen. Click left on the main simulation window and hold down left mouse button until the shape is the size required.

Import an AutoCAD drawing to use as a background image for your simulation.
More information

Image List
Add an image to the simulation window that changes whenever the global data item value you attach to it changes.
More information

Layered displays allow simulation objects to be assigned to different layers on the screen.
More information

Text Box
Write text on the simulation window.
More information

Add dynamic text pop up boxes displayed while your simulation runs.

Display dynamic run time charts of any data you wish.
More information

Display a dynamic table of your data on the simulation.
More information

Visual Data
Display a text or number global data item onscreen that will update as your simulation runs.
More information

Data Bar
Data Bars allow you to represent the value of a simulation variable on screen. These give an animated display of how a variable’s value is changing over simulation run time.

Sliders let you update the value of bar by sliding a bar up and down, you can even change the variable value at run time.
More information

Drop a button onscreen and attach an action to create a custom interface for your simulation.
More information

Simulation Properties
Add a title and introduction dialog to your simulation.
More information

Add custom dialogs to display information, change inputs and display custom results.
More information

Command Menus
Add your own menus to the home tab to give access to your custom dialogs.
More information
