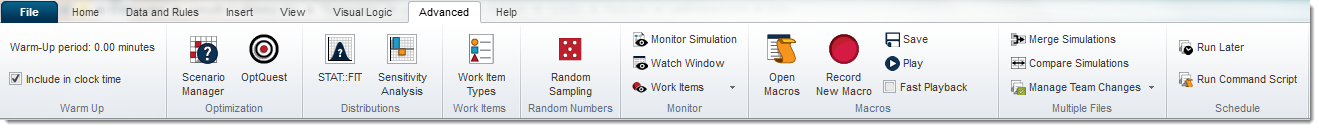

Advanced Tab

This tab is not enabled by default. It can be enabled through preferences.

Warm Up Period
The warm up time is the time that the simulation will run before starting to collect results.
More information

Scenario Manager
Run different scenarios with the same simulation one after the other to find the best outcome.
More information

OptQuest
A Simul8 add-on provided free with Simul8 Professional. Optimize your simulation to find the best input values to meet your criteria of success.
More information

Stat::Fit
A Simul8 add-on provided free with Simul8 Professional. Fit a distribution to your data. Stat::Fit help files are provided with the Stat::Fit tool
More information

Sensitivity Analysis
Analyze your named distributions in terms of how sensitive the results are to changes in these inputs.
More information

Work Item Types
Manage the work item type in your simulation.
More information

Random Sampling
Change the random numbers being used.
More information

Monitor Simulation
The simulation monitor lets you see the detailed activity taking place within Simul8's internal simulation engine.
More information

Watch Window
A tool to monitor values of expressions as your simulation executes for debugging.
More information

All Work Items
Tools to monitor and investigate the work items in your simulation.
More information

Macros
Series of features that allow you to record, open, and view the building of a simulation.
More information
