Schema SIMUL8XML.xsd

Below is the full SIMUL8 XML. However, you will probably find the easiest way to get started with understanding SIMUL8's XML is to do this: Create a small simulation in SIMUL8's normal user interface, then save it as an XS8 (xml) file, then open this file in NOTEPAD or IE. XML files are easy to read visually and because the raw XML relates to a small simulation you have created it's likely to be easier for you to understand. Change the simulation, re-save it and open another copy of the XML file in NOTEPAD and look to see what has changed. If you rename the files to TXT types you can open them in WORD and use its file-compare feature.

A
Accumulating
ActionCode
AdditionalSegment
AllowGaps
AllowResourceHolding
AlwaysShowArrows
AlwaysShowSubWindows
Antithetic
ApplyReverseResource
TravelTimes

Attbat
AutoBinTitles
AutoCalcRepairTime
AutoChange
AutoLink
Automatic
AutoTransitLink

B
Basefilename
BatchsizeoutSampleData
BeepOnComplete
Bgcolor
Bottom
BreakDowns
BreakDownType
BreakDownTypes
BrokenProdMode
Build

C
Call_VisualLogic_Actioncode
Call_VisualLogic_End_run_code
Call_VisualLogic_On_back_code
Call_VisualLogic_On_close_code
Call_VisualLogic_On_open_code
Call_VisualLogic_On_sheet_
button_code

Call_VisualLogic_On_simulation
_open_code

Call_VisualLogic_Reset_code
Call_VisualLogic_Route_
in_before_code

Call_VisualLogic_Time_
check_code

Call_VisualLogic_Work
_complete_code

CancelEndsLogic
CapitalCost
Cell
ChangeOverLabel
ChangeOverSampleData
ChangeOverStyle
Check_exit_clear_routein
Clock
CmImageOnDisplay
Code1
Code2
Collect_assemble
CollectResults
Collectresults
Color
Color1
Color2
ColorBValue
ColorGValue
ColorRValue
Cols
Command_menu1
Command_menu2
Command_menu3
Command_menu_name1
Command_menu_name2
Command_menu_name3
Comparisons
ComponentData
ComponentID
ContentsIndicatorSource
Conv_length
Conv_speed
CProbability
CreatedInBuild
Currency
CurrentStream
CycleMatrix
CycleObject

D
Data_update_time
DaysPerWeek
DefaultConveyorDisplayData
DefaultLoadDisplayData
DefaultMachineDisplayData

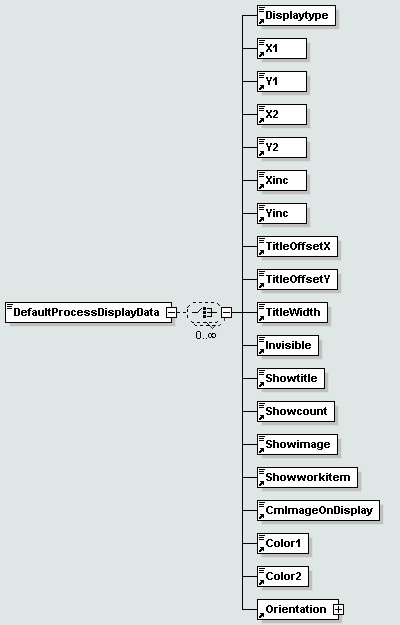

DefaultProcessDisplayData
DefaultResourceDisplayData
DefaultStorageDisplayData
DefaultTankDisplayData
DefaultToFastsave
DefaultWorkEntryDisplayData
DefaultWorkExitDisplayData
Description
DetailedLog
DetailedLogging
DetailedResultsLog
Dialog
DialogItem
DialogObjects
Disp_width
DisplayData
DisplayOffsetX
DisplayOffsetY
Displaytype
DisplayWithWorkX
DisplayWithWorkY
Distance
DistParam1
DistParam1Calc
DistParam2
DistParam2Calc
DistParam3
DistParam3Calc
DistParam4
DistParam4Calc
DistrbutionType
DistribType
Distribution
Distributions
DrawObject
DrawObjects

E
EndLocation
Environment
Everyresult
ExitWorkType
Expiretime
ExtendTimeForWorkCompletion
ExternalLinks
Extra_type_info

F
Face
FileParameters
Finance
FirstatZero
Firstchild
Fixed_prod_type
Flow_units_text
Flow_units_text2
FlowtimeSampleData
Foundroute
FromObject
FromSimulationObject
FromUseEntryTime
Fsbold
Fsitalic
Fsunderline

G
GaptimeSampleData
GraphExportIncludeTitles
GraphicsObjects
GraphUpdateInterval
Group
GroupMember
GroupResource
Groups

H
Height
HHMMSScod
HideLostWarning
Hidemai
Hidesubs
HighVol
Highvol
HoldOrReleaseCode
HVbatch

I
IgnoreBlockedRoutes
IgnoreLargeBatchWarnings
IgnoreStarvedRoutes
Image_Data
ImageObjects
Imagetype
Include_command_menu1
Include_command_menu2
Include_command_menu3
Include_label_display
IncludeCost
IncludeLabel
Index
IndexingGroup
InitialConts
InputList
InputRequiredOnOutput
InRoutemode
InterArrivalTimeSampleData
InterObjectTravel
InterruptonStorage
Invisible
ItemType

L
Label
LabelAction
LabelActions
LabelActionSampleData
Lastroute
Left
Length
LengthOfDay
LIFO
Linethickness
Link
location
Lock_display_length
LogicObjects
LogicRNSubStream
LogicSection
LowerBound
Lstyle

M
MainDataSheet
MainHeight
MainTop
MainWidth
Matchatt
Maxattbat
Maxconts
MaxConts
Maxlimit
MaxNumber
MaxRange
Member
Members
Min_wait_timeCalc
Minattbat
MinimumBuild
MinimumRepairTime
Minlimit
MinNumber
Minposition
MinRange
Model_close_diag
Model_start_diag
Model_warm_up_set
MTBF_mode
MTBFSampleData
MTTRSampleData
MustBeNumber

N
Name
NewGroupOnDuplication
Nextasfinish
NextInComponent
NextOnMenu
Noadvice
Notes

O
ObjectCalc
ObjectID
OEM_XML
Opendirect
OpenState
OperationTimeSampleData
Ori_11
Ori_22
OtherRevenue
Others_diag
OutputList

P
Percent
Percent_limit
PoolMember
PoolMembers
Position
Pref_shifted_random_route
Preference_route
PrinterZoomHeight
PrinterZoomWidth
PrintToFitPages
Priority
PriorityLabel
PriorityMode
Prod_type_att
ProfileCells
ProfileItem
PurposeCode

R
Randomness
RealSpeed
ReferencedDistribution
ReleaseAs
Relresources
Requnits
ResetValue
Resource
ResourceItem
ResourceList
Resourcesfirst
ResultItem
ResultsCollectionPeriod
ResultsExport
ResultsInterval
ResultsSegLabel
ResultsSummary
Right
RNStream
RNSubStream
RouteInBeforeAlways
RouteLabel
Routemode
RouteRNSubStream
Rows
Runs

S
S8FileName
S8FileVersion
S8flags
S8L1
S8L10
S8L2
S8L3
S8L4
S8L5
S8L6
S8L7
S8L8
S8L9

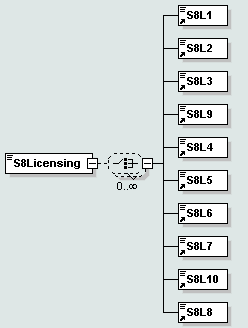

S8Licensing
S8ObjectType
S8SaveFlags
S8sparei
S8TheType
SampleData
Samplevalue
Scale
Scaleauto
Scalemax
Scalemin
ScaleX
ScaleY
ScaleZ
ScreenPixels
SDTimeSlice
Seed
SendToVISA
ShelfLifeLabel
Shifts
ShiftsPerDay
ShiftsPerWeek
ShowAllLinks
Showaswiz
Showcount
ShowCycleMatrixAnimation
Showimage
Showmylinks
ShowTimeBasedAnimation
ShowTitle
Showtitle
Showworkitem
ShowZeroTimeAnimation
SimObject
SIMUL8Window
SIMUL8XML
SimulationAssistant
SimulationObject
SimulationObjects
SimulationParameters
SolutionXML
Speed
SpreadFormat
StartLocation
StartOfDay
Stat_high
Stat_low
StopInputQueue
StopworkImmediate
Style
Submode1
Submode2
Submode3
Submode4
SubRNStream
SwimLaneHeight

T
Text
Textp
TextValue
Thetext
Thevar
Time
TimeCost
TimeSaving
TimingStyle
TISmode
Title
TitleOffsetX
TitleOffsetY
TitleWidth
ToObject
Top
ToSimulationObject
ToUseEntryTime
Trace
Transitlink
Transparent
TransparentColor
Travel
TravelLink
TravelTime
Traveltime_changed
Trial
Trials
TrialsAverage
Typecode

U
UnitCost
Units
Unlimited
UpperBound
URL
UseDialogOfObject
Uselimit
Userates
Usevba

V
V4ActionSeq
Value
Variable
Vbxmin
Vbxtimeint
Vbxtimestart
VisioMaxY
VisioPixelsPerUnit
VL
Vr_imagename
VR_x
VR_y
VR_z

W
Wait_for_interval
Warmuptime
Width
Window
WindowObjects
Work_time_between_setups
WorkItemImage
WorkItemLimit
WorkItemType
WorkTypes

X
X
X1
X2
Xinc
Xlxcell
Xlxcellsheet

Y
Y
Y1
Y2
Yinc
Young_Old_UseQueueTime

Accumulating
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Accumulating" type="xs:string"/>

ActionCode
diagram
type	xs:string
used by	element LabelAction
source	<xs:element name="ActionCode" type="xs:string"/>

AdditionalSegment

diagram

children

ScreenPixels EndLocation

used by

TravelLink

attributes

Name	Type	Use	Default	Fixed	Annotation
Position	xs:string	required

source

<xs:element name="AdditionalSegment">
  <xs:complexType mixed="true">
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <xs:element ref="ScreenPixels"/>
      <xs:element ref="EndLocation"/>
    </xs:choice>
    <xs:attribute name="Position" type="xs:string" use="required"/>
  </xs:complexType>
</xs:element>

AllowGaps
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="AllowGaps" type="xs:string"/>

AllowResourceHolding
diagram
type	xs:string
used by	SimulationParameters
source	<xs:element name="AllowResourceHolding" type="xs:string"/>

AlwaysShowArrows
diagram
type	xs:string
used by	Environment
source	<xs:element name="AlwaysShowArrows" type="xs:string"/>

AlwaysShowSubWindows
diagram
type	xs:string
used by	Environment
source	<xs:element name="AlwaysShowSubWindows" type="xs:string"/>

Antithetic
diagram
type	xs:string
used by	Randomness
source	<xs:element name="Antithetic" type="xs:string"/>

ApplyReverseResourceTravelTimes
diagram
type	xs:string
used by	Environment
source	<xs:element name="ApplyReverseResourceTravelTimes" type="xs:string"/>

Attbat
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Attbat" type="xs:string"/>

AutoBinTitles
diagram
type	xs:string
used by	Environment
source	<xs:element name="AutoBinTitles" type="xs:string"/>

AutoCalcRepairTime
diagram
type	xs:string
used by	BreakDowns
source	<xs:element name="AutoCalcRepairTime" type="xs:string"/>

AutoChange
diagram
type	xs:string
used by	element Randomness
source	<xs:element name="AutoChange" type="xs:string"/>

AutoLink
diagram
type	xs:string
used by	Environment
source	<xs:element name="AutoLink" type="xs:string"/>

Automatic
diagram
type	xs:string
used by	BreakDowns
source	<xs:element name="Automatic" type="xs:string"/>

element AutoTransitLink
diagram
type	xs:string
used by	element Environment
source	<xs:element name="AutoTransitLink" type="xs:string"/>

Basefilename
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Basefilename" type="xs:string"/>

batchsizeoutSampleData
diagram
children	Userates DistParam1 DistParam2 DistParam3 DistParam4 DistribType RNSubStream ReferencedDistribution
used by	element SimulationObject
source	<xs:element name="batchsizeoutSampleData"> <xs:complexType> <xs:sequence> <xs:element ref="Userates"/> <xs:element ref="DistParam1"/> <xs:element ref="DistParam2"/> <xs:element ref="DistParam3"/> <xs:element ref="DistParam4"/> <xs:element ref="DistribType"/> <xs:element ref="RNSubStream"/> <xs:element ref="ReferencedDistribution"/> </xs:sequence> </xs:complexType> </xs:element>

BeepOnComplete
diagram
type	xs:string
used by	SimulationParameters
source	<xs:element name="BeepOnComplete" type="xs:string"/>

Bgcolor
diagram
type	xs:string
used by	elements Group SIMUL8Window
source	<xs:element name="Bgcolor" type="xs:string"/>

Bottom
diagram
type	xs:string
used by	elements location Minposition Position
source	<xs:element name="Bottom" type="xs:string"/>

BreakDowns
diagram
children	Automatic StopworkImmediate StopInputQueue ExtendTimeForWorkCompletion MinimumRepairTime AutoCalcRepairTime BrokenProdMode MTBFSampleData MTTRSampleData MTBF_mode BreakDownTypes
used by	elements SimulationObject
source	<xs:element name="BreakDowns"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="Automatic"/> <xs:element ref="StopworkImmediate"/> <xs:element ref="StopInputQueue"/> <xs:element ref="ExtendTimeForWorkCompletion"/> <xs:element ref="MinimumRepairTime"/> <xs:element ref="AutoCalcRepairTime"/> <xs:element ref="BrokenProdMode"/> <xs:element ref="MTBFSampleData"/> <xs:element ref="MTTRSampleData"/> <xs:element ref="MTBF_mode"/> <xs:element ref="BreakDownTypes"/> </xs:choice> </xs:complexType> </xs:element>

BreakDownType

diagram

children

MinimumRepairTime MTBFSampleData MTTRSampleData MTBF_mode CycleObject

used by

BreakDownTypes

attributes

Name	Type	Use	Default	Fixed	Annotation
Name	xs:string	required

source

<xs:element name="BreakDownType">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="MinimumRepairTime"/>
      <xs:element ref="MTBFSampleData"/>
      <xs:element ref="MTTRSampleData"/>
      <xs:element ref="MTBF_mode"/>
      <xs:element ref="CycleObject"/>
    </xs:sequence>
    <xs:attribute name="Name" type="xs:string" use="required"/>
  </xs:complexType>
</xs:element>

BreakDownTypes
diagram
children	BreakDownType
used by	element BreakDowns
source	<xs:element name="BreakDownTypes"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="BreakDownType"/> </xs:choice> </xs:complexType> </xs:element>

BrokenProdMode
diagram
type	xs:string
used by	BreakDowns
source	<xs:element name="BrokenProdMode" type="xs:string"/>

Build
diagram
type	xs:string
used by	element FileParameters
source	<xs:element name="Build" type="xs:string"/>

Call_VisualLogic_Actioncode
diagram
type	xs:string
used by	element SimulationObject
source	<xs:element name="Call_VisualLogic_Actioncode" type="xs:string"/>

Call_VisualLogic_End_run_code
diagram
type	xs:string
used by	element LogicObjects
source	<xs:element name="Call_VisualLogic_End_run_code" type="xs:string"/>

Call_VisualLogic_On_back_code
diagram
type	xs:string
used by	element Dialog
source	<xs:element name="Call_VisualLogic_On_back_code" type="xs:string"/>

Call_VisualLogic_On_close_code
diagram
type	xs:string
used by	element Dialog
source	<xs:element name="Call_VisualLogic_On_close_code" type="xs:string"/>

Call_VisualLogic_On_open_code
diagram
type	xs:string
used by	element Dialog
source	<xs:element name="Call_VisualLogic_On_open_code" type="xs:string"/>

Call_VisualLogic_On_sheet_button_code
diagram
type	xs:string
used by	LogicObjects
source	<xs:element name="Call_VisualLogic_On_sheet_button_code" type="xs:string"/>

Call_VisualLogic_On_simulation_open_code
diagram
type	xs:string
used by	LogicObjects
source	<xs:element name="Call_VisualLogic_On_simulation_open_code" type="xs:string"/>

Call_VisualLogic_Reset_code
diagram
type	xs:string
used by	LogicObjects
source	<xs:element name="Call_VisualLogic_Reset_code" type="xs:string"/>

Call_VisualLogic_Route_in_before_code
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Call_VisualLogic_Route_in_before_code" type="xs:string"/>

Call_VisualLogic_Time_check_code
diagram
type	xs:string
used by	LogicObjects
source	<xs:element name="Call_VisualLogic_Time_check_code" type="xs:string"/>

Call_VisualLogic_Work_complete_code
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Call_VisualLogic_Work_complete_code" type="xs:string"/>

CancelEndsLogic
diagram
type	xs:string
used by	element Dialog
source	<xs:element name="CancelEndsLogic" type="xs:string"/>

CapitalCost
diagram
type	xs:string
used by	element Finance
source	<xs:element name="CapitalCost" type="xs:string"/>

Cell

diagram

type

extension of xs:string

used by

element Variable

attributes

Name	Type	Use	Default	Fixed	Annotation
Type	xs:string	required
Row	xs:string	required
Col	xs:string	required

source

<xs:element name="Cell">
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="xs:string">
        <xs:attribute name="Type" type="xs:string" use="required"/>
        <xs:attribute name="Row" type="xs:string" use="required"/>
        <xs:attribute name="Col" type="xs:string" use="required"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

ChangeOverLabel
diagram
type	xs:string
used by	elements SimulationObject
source	<xs:element name="ChangeOverLabel" type="xs:string"/>

ChangeOverSampleData
diagram
children	Userates DistParam1 DistParam2 DistParam3 DistParam4 DistribType RNSubStream ReferencedDistribution DistParam1Calc
used by	elements SimulationObject
source	<xs:element name="changeOverSampleData"> <xs:complexType> <xs:sequence> <xs:element ref="Userates"/> <xs:element ref="DistParam1"/> <xs:element ref="DistParam2"/> <xs:element ref="DistParam3"/> <xs:element ref="DistParam4"/> <xs:element ref="DistribType"/> <xs:element ref="RNSubStream"/> <xs:element ref="ReferencedDistribution"/> <xs:element ref="DistParam1Calc" minOccurs="0"/> </xs:sequence> </xs:complexType> </xs:element>

ChangeOverStyle
diagram
type	xs:string
used by	elements SimulationObject
source	<xs:element name="ChangeOverStyle" type="xs:string"/>

Check_exit_clear_routein
diagram
type	xs:string
used by	elements SimulationObject
source	<xs:element name="Check_exit_clear_routein" type="xs:string"/>

Clock
diagram
children	Face HHMMSScode Speed RealSpeed StartOfDay LengthOfDay Style ShiftsPerDay ShiftsPerWeek DaysPerWeek Text
used by	Environment
source	<xs:element name="Clock"> <xs:complexType> <xs:sequence> <xs:element ref="Face"/> <xs:element ref="HHMMSScode"/> <xs:element ref="Speed"/> <xs:element ref="RealSpeed"/> <xs:element ref="StartOfDay"/> <xs:element ref="LengthOfDay"/> <xs:element ref="Style"/> <xs:element ref="ShiftsPerDay"/> <xs:element ref="ShiftsPerWeek"/> <xs:element ref="DaysPerWeek"/> <xs:element ref="Text"/> </xs:sequence> </xs:complexType> </xs:element>

CmImageOnDisplay

diagram

type

xs:string

used by

elements

DefaultConveyorDisplayData DefaultLoadDisplayData DefaultMachineDisplayData DefaultProcessDisplayData DefaultResourceDisplayData DefaultStorageDisplayData DefaultTankDisplayData DefaultWorkEntryDisplayData DefaultWorkExitDisplayData DisplayData

source

<xs:element name="CmImageOnDisplay" type="xs:string"/>

Code1
diagram
type	xs:string
used by	element ResultItem
source	<xs:element name="Code1" type="xs:string"/>

Code2
diagram
type	xs:string
used by	element ResultItem
source	<xs:element name="Code2" type="xs:string"/>

Collect_assemble
diagram
type	xs:string
used by	elements SimulationObject
source	<xs:element name="Collect_assemble" type="xs:string"/>

Collect_wait_all
diagram
type	xs:string
used by	elements SimulationObject
source	<xs:element name="Collect_wait_all" type="xs:string"/>

CollectResults
diagram
type	xs:string
used by	element Group
source	<xs:element name="CollectResults" type="xs:string"/>

element Collectresults
diagram
type	xs:string
used by	elements SimulationObject
source	<xs:element name="Collectresults" type="xs:string"/>

Color
diagram
type	xs:string
used by	element DrawObject
source	<xs:element name="Color" type="xs:string"/>

Color1

diagram

type

xs:string

used by

elements

source

<xs:element name="Color1" type="xs:string"/>

Color2

diagram

type

xs:string

used by

elements

source

<xs:element name="Color2" type="xs:string"/>

ColorBValue
diagram
type	xs:string
used by	element DisplayData
source	<xs:element name="ColorBValue" type="xs:string"/>

ColorGValue
diagram
type	xs:string
used by	element DisplayData
source	<xs:element name="ColorGValue" type="xs:string"/>

ColorRValue
diagram
type	xs:string
used by	element DisplayData
source	<xs:element name="ColorRValue" type="xs:string"/>

Cols
diagram
type	xs:string
used by	element Variable
source	<xs:element name="Cols" type="xs:string"/>

Command_menu1
diagram
type	xs:string
used by	element DialogObjects
source	<xs:element name="Command_menu1" type="xs:string"/>

Command_menu2
diagram
type	xs:string
used by	element DialogObjects
source	<xs:element name="Command_menu2" type="xs:string"/>

Command_menu3
diagram
type	xs:string
used by	element DialogObjects
source	<xs:element name="Command_menu3" type="xs:string"/>

Command_menu_name1
diagram
type	xs:string
used by	element DialogObjects
source	<xs:element name="Command_menu_name1" type="xs:string"/>

Command_menu_name2
diagram
type	xs:string
used by	element DialogObjects
source	<xs:element name="Command_menu_name2" type="xs:string"/>

Command_menu_name3
diagram
type	xs:string
used by	element DialogObjects
source	<xs:element name="Command_menu_name3" type="xs:string"/>

Comparisons
diagram
children	Trials Runs TrialsAverage
used by	element SimulationParameters
source	<xs:element name="Comparisons"> <xs:complexType> <xs:sequence> <xs:element ref="Trials"/> <xs:element ref="Runs"/> <xs:element ref="TrialsAverage"/> </xs:sequence> </xs:complexType> </xs:element>

ComponentData
diagram
children	NextInComponent ComponentID
used by	element SimulationObject
source	<xs:element name="ComponentData"> <xs:complexType> <xs:sequence> <xs:element ref="NextInComponent" minOccurs="0"/> <xs:element ref="ComponentID"/> </xs:sequence> </xs:complexType> </xs:element>

ComponentID
diagram
type	xs:string
used by	element ComponentData
source	<xs:element name="ComponentID" type="xs:string"/>

ContentsIndicatorSource
diagram
type	xs:string
used by	element Environment
source	<xs:element name="ContentsIndicatorSource" type="xs:string"/>

Conv_length
diagram
type	xs:string
used by	element SimulationObject
source	<xs:element name="Conv_length" type="xs:string"/>

Conv_speed
diagram
type	xs:string
used by	element SimulationObject
source	<xs:element name="Conv_speed" type="xs:string"/>

CProbability
diagram
type	xs:string
used by	element ProfileItem
source	<xs:element name="CProbability" type="xs:string"/>

CreatedInBuild
diagram
type	xs:string
used by	FileParameters
source	<xs:element name="CreatedInBuild" type="xs:string"/>

Currency
diagram
type	xs:string
used by	FileParameters
source	<xs:element name="Currency" type="xs:string"/>

CurrentStream
diagram
type	xs:string
used by	Randomness
source	<xs:element name="CurrentStream" type="xs:string"/>

CycleMatrix
diagram
type	xs:string
used by	element SimulationObjects
source	<xs:element name="CycleMatrix" type="xs:string"/>

CycleObject
diagram
type	xs:string
used by	element BreakDownType
source	<xs:element name="CycleObject" type="xs:string"/>

Data_update_time
diagram
type	xs:string
used by	element SimulationObjects
source	<xs:element name="Data_update_time" type="xs:string"/>

DaysPerWeek
diagram
type	xs:string
used by	element Clock
source	<xs:element name="DaysPerWeek" type="xs:string"/>

DefaultConveyorDisplayData
diagram
children	Displaytype X1 Y1 X2 Y2 Xinc Yinc TitleOffsetX TitleOffsetY TitleWidth Invisible Showtitle Showcount Showimage Showworkitem CmImageOnDisplay Color1 Color2 Orientation
used by	element GraphicsObjects
source	<xs:element name="DefaultConveyorDisplayData"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="Displaytype"/> <xs:element ref="X1"/> <xs:element ref="Y1"/> <xs:element ref="X2"/> <xs:element ref="Y2"/> <xs:element ref="Xinc"/> <xs:element ref="Yinc"/> <xs:element ref="TitleOffsetX"/> <xs:element ref="TitleOffsetY"/> <xs:element ref="TitleWidth"/> <xs:element ref="Invisible"/> <xs:element ref="Showtitle"/> <xs:element ref="Showcount"/> <xs:element ref="Showimage"/> <xs:element ref="Showworkitem"/> <xs:element ref="CmImageOnDisplay"/> <xs:element ref="Color1"/> <xs:element ref="Color2"/> <xs:element ref="Orientation"/> </xs:choice> </xs:complexType> </xs:element>

DefaultLoadDisplayData
diagram
children	Displaytype X1 Y1 X2 Y2 Xinc Yinc TitleOffsetX TitleOffsetY TitleWidth Invisible Showtitle Showcount Showimage Showworkitem CmImageOnDisplay Color1 Color2 Orientation
used by	element GraphicsObjects
source	<xs:element name="DefaultLoadDisplayData"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="Displaytype"/> <xs:element ref="X1"/> <xs:element ref="Y1"/> <xs:element ref="X2"/> <xs:element ref="Y2"/> <xs:element ref="Xinc"/> <xs:element ref="Yinc"/> <xs:element ref="TitleOffsetX"/> <xs:element ref="TitleOffsetY"/> <xs:element ref="TitleWidth"/> <xs:element ref="Invisible"/> <xs:element ref="Showtitle"/> <xs:element ref="Showcount"/> <xs:element ref="Showimage"/> <xs:element ref="Showworkitem"/> <xs:element ref="CmImageOnDisplay"/> <xs:element ref="Color1"/> <xs:element ref="Color2"/> <xs:element ref="Orientation"/> </xs:choice> </xs:complexType> </xs:element>

DefaultMachineDisplayData
diagram
children	Displaytype X1 Y1 X2 Y2 Xinc Yinc TitleOffsetX TitleOffsetY TitleWidth Invisible Showtitle Showcount Showimage Showworkitem CmImageOnDisplay Color1 Color2 Orientation
used by	element GraphicsObjects
source	<xs:element name="DefaultMachineDisplayData"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="Displaytype"/> <xs:element ref="X1"/> <xs:element ref="Y1"/> <xs:element ref="X2"/> <xs:element ref="Y2"/> <xs:element ref="Xinc"/> <xs:element ref="Yinc"/> <xs:element ref="TitleOffsetX"/> <xs:element ref="TitleOffsetY"/> <xs:element ref="TitleWidth"/> <xs:element ref="Invisible"/> <xs:element ref="Showtitle"/> <xs:element ref="Showcount"/> <xs:element ref="Showimage"/> <xs:element ref="Showworkitem"/> <xs:element ref="CmImageOnDisplay"/> <xs:element ref="Color1"/> <xs:element ref="Color2"/> <xs:element ref="Orientation"/> </xs:choice> </xs:complexType> </xs:element>

DefaultProcessDisplayData
diagram
children	Displaytype X1 Y1 X2 Y2 Xinc Yinc TitleOffsetX TitleOffsetY TitleWidth Invisible Showtitle Showcount Showimage Showworkitem CmImageOnDisplay Color1 Color2 Orientation
used by	element GraphicsObjects
source	<xs:element name="DefaultProcessDisplayData"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="Displaytype"/> <xs:element ref="X1"/> <xs:element ref="Y1"/> <xs:element ref="X2"/> <xs:element ref="Y2"/> <xs:element ref="Xinc"/> <xs:element ref="Yinc"/> <xs:element ref="TitleOffsetX"/> <xs:element ref="TitleOffsetY"/> <xs:element ref="TitleWidth"/> <xs:element ref="Invisible"/> <xs:element ref="Showtitle"/> <xs:element ref="Showcount"/> <xs:element ref="Showimage"/> <xs:element ref="Showworkitem"/> <xs:element ref="CmImageOnDisplay"/> <xs:element ref="Color1"/> <xs:element ref="Color2"/> <xs:element ref="Orientation"/> </xs:choice> </xs:complexType> </xs:element>

DefaultResourceDisplayData
diagram
children	Displaytype X1 Y1 X2 Y2 Xinc Yinc TitleOffsetX TitleOffsetY TitleWidth Invisible Showtitle Showcount Showimage Showworkitem CmImageOnDisplay Color1 Color2 Orientation
used by	element GraphicsObjects
source	<xs:element name="DefaultRe source DisplayData"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="Displaytype"/> <xs:element ref="X1"/> <xs:element ref="Y1"/> <xs:element ref="X2"/> <xs:element ref="Y2"/> <xs:element ref="Xinc"/> <xs:element ref="Yinc"/> <xs:element ref="TitleOffsetX"/> <xs:element ref="TitleOffsetY"/> <xs:element ref="TitleWidth"/> <xs:element ref="Invisible"/> <xs:element ref="Showtitle"/> <xs:element ref="Showcount"/> <xs:element ref="Showimage"/> <xs:element ref="Showworkitem"/> <xs:element ref="CmImageOnDisplay"/> <xs:element ref="Color1"/> <xs:element ref="Color2"/> <xs:element ref="Orientation"/> </xs:choice> </xs:complexType> </xs:element>

DefaultStorageDisplayData
diagram
children	Displaytype X1 Y1 X2 Y2 Xinc Yinc TitleOffsetX TitleOffsetY TitleWidth Invisible Showtitle Showcount Showimage Showworkitem CmImageOnDisplay Color1 Color2 Orientation
used by	element GraphicsObjects
source	<xs:element name="DefaultStorageDisplayData"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="Displaytype"/> <xs:element ref="X1"/> <xs:element ref="Y1"/> <xs:element ref="X2"/> <xs:element ref="Y2"/> <xs:element ref="Xinc"/> <xs:element ref="Yinc"/> <xs:element ref="TitleOffsetX"/> <xs:element ref="TitleOffsetY"/> <xs:element ref="TitleWidth"/> <xs:element ref="Invisible"/> <xs:element ref="Showtitle"/> <xs:element ref="Showcount"/> <xs:element ref="Showimage"/> <xs:element ref="Showworkitem"/> <xs:element ref="CmImageOnDisplay"/> <xs:element ref="Color1"/> <xs:element ref="Color2"/> <xs:element ref="Orientation"/> </xs:choice> </xs:complexType> </xs:element>

DefaultTankDisplayData
diagram
children	Displaytype X1 Y1 X2 Y2 Xinc Yinc TitleOffsetX TitleOffsetY TitleWidth Invisible Showtitle Showcount Showimage Showworkitem CmImageOnDisplay Color1 Color2 Orientation
used by	element GraphicsObjects
source	<xs:element name="DefaultTankDisplayData"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="Displaytype"/> <xs:element ref="X1"/> <xs:element ref="Y1"/> <xs:element ref="X2"/> <xs:element ref="Y2"/> <xs:element ref="Xinc"/> <xs:element ref="Yinc"/> <xs:element ref="TitleOffsetX"/> <xs:element ref="TitleOffsetY"/> <xs:element ref="TitleWidth"/> <xs:element ref="Invisible"/> <xs:element ref="Showtitle"/> <xs:element ref="Showcount"/> <xs:element ref="Showimage"/> <xs:element ref="Showworkitem"/> <xs:element ref="CmImageOnDisplay"/> <xs:element ref="Color1"/> <xs:element ref="Color2"/> <xs:element ref="Orientation"/> </xs:choice> </xs:complexType> </xs:element>

DefaultToFastsave
diagram
type	xs:string
used by	element Environment
source	<xs:element name="DefaultToFastsave" type="xs:string"/>

DefaultWorkEntryDisplayData
diagram
children	Displaytype X1 Y1 X2 Y2 Xinc Yinc TitleOffsetX TitleOffsetY TitleWidth Invisible Showtitle Showcount Showimage Showworkitem CmImageOnDisplay Color1 Color2 Orientation
used by	element GraphicsObjects
source	<xs:element name="DefaultWorkEntryDisplayData"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="Displaytype"/> <xs:element ref="X1"/> <xs:element ref="Y1"/> <xs:element ref="X2"/> <xs:element ref="Y2"/> <xs:element ref="Xinc"/> <xs:element ref="Yinc"/> <xs:element ref="TitleOffsetX"/> <xs:element ref="TitleOffsetY"/> <xs:element ref="TitleWidth"/> <xs:element ref="Invisible"/> <xs:element ref="Showtitle"/> <xs:element ref="Showcount"/> <xs:element ref="Showimage"/> <xs:element ref="Showworkitem"/> <xs:element ref="CmImageOnDisplay"/> <xs:element ref="Color1"/> <xs:element ref="Color2"/> <xs:element ref="Orientation"/> </xs:choice> </xs:complexType> </xs:element>

DefaultWorkExitDisplayData
diagram
children	Displaytype X1 Y1 X2 Y2 Xinc Yinc TitleOffsetX TitleOffsetY TitleWidth Invisible Showtitle Showcount Showimage Showworkitem CmImageOnDisplay Color1 Color2 Orientation
used by	element GraphicsObjects
source	<xs:element name="DefaultWorkExitDisplayData"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="Displaytype"/> <xs:element ref="X1"/> <xs:element ref="Y1"/> <xs:element ref="X2"/> <xs:element ref="Y2"/> <xs:element ref="Xinc"/> <xs:element ref="Yinc"/> <xs:element ref="TitleOffsetX"/> <xs:element ref="TitleOffsetY"/> <xs:element ref="TitleWidth"/> <xs:element ref="Invisible"/> <xs:element ref="Showtitle"/> <xs:element ref="Showcount"/> <xs:element ref="Showimage"/> <xs:element ref="Showworkitem"/> <xs:element ref="CmImageOnDisplay"/> <xs:element ref="Color1"/> <xs:element ref="Color2"/> <xs:element ref="Orientation"/> </xs:choice> </xs:complexType> </xs:element>

Description
diagram
type	xs:string
used by	element ResultItem
source	<xs:element name="Description" type="xs:string"/>

DetailedLog
diagram
children	FromObject FromUseEntryTime ToObject ToUseEntryTime IncludeLabel IncludeCost
used by	element DetailedResultsLog
source	<xs:element name="DetailedLog"> <xs:complexType> <xs:sequence> <xs:element ref="FromObject"/> <xs:element ref="FromUseEntryTime"/> <xs:element ref="ToObject"/> <xs:element ref="ToUseEntryTime"/> <xs:element ref="IncludeLabel"/> <xs:element ref="IncludeCost"/> </xs:sequence> </xs:complexType> </xs:element>

DetailedLogging
diagram
type	xs:string
used by	element DetailedResultsLog
source	<xs:element name="DetailedLogging" type="xs:string"/>

DetailedResultsLog
diagram
children	DetailedLogging DetailedLog
used by	element SimulationParameters
source	<xs:element name="DetailedResultsLog"> <xs:complexType> <xs:sequence> <xs:element ref="DetailedLogging"/> <xs:element ref="DetailedLog" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element>

Dialog

diagram

children

CancelEndsLogic Call_VisualLogic_On_open_code Call_VisualLogic_On_close_code Call_VisualLogic_On_back_code DialogItem Showaswiz Nextasfinish NextOnMenu

used by

DialogObjects

attributes

Name	Type	Use	Default	Fixed	Annotation
Name	xs:string	required
ID	xs:string	required

source

<xs:element name="Dialog">
  <xs:complexType mixed="true">
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <xs:element ref="CancelEndsLogic"/>
      <xs:element ref="Call_VisualLogic_On_open_code"/>
      <xs:element ref="Call_VisualLogic_On_close_code"/>
      <xs:element ref="Call_VisualLogic_On_back_code"/>
      <xs:element ref="DialogItem"/>
      <xs:element ref="Showaswiz"/>
      <xs:element ref="Nextasfinish"/>
      <xs:element ref="NextOnMenu"/>
    </xs:choice>
    <xs:attribute name="Name" type="xs:string" use="required"/>
    <xs:attribute name="ID" type="xs:string" use="required"/>
  </xs:complexType>
</xs:element>

DialogItem

diagram

children

ItemType MinRange MaxRange Text MustBeNumber ObjectCalc

used by

Dialog

attributes

Name	Type	Use	Default	Fixed	Annotation
Position	xs:string	required

source

<xs:element name="DialogItem">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="ItemType"/>
      <xs:element ref="MinRange"/>
      <xs:element ref="MaxRange"/>
      <xs:element ref="Text" minOccurs="0"/>
      <xs:element ref="MustBeNumber" minOccurs="0"/>
      <xs:element ref="ObjectCalc" minOccurs="0"/>
    </xs:sequence>
    <xs:attribute name="Position" type="xs:string" use="required"/>
  </xs:complexType>
</xs:element>

DialogObjects
diagram
children	Dialog Command_menu1 Include_command_menu1 Command_menu_name1 Command_menu2 Include_command_menu2 Command_menu_name2 Command_menu3 Include_command_menu3 Command_menu_name3 Model_start_diag Model_close_diag
used by	element GraphicsObjects
source	<xs:element name="DialogObjects"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="Dialog"/> <xs:element ref="Command_menu1"/> <xs:element ref="Include_command_menu1"/> <xs:element ref="Command_menu_name1"/> <xs:element ref="Command_menu2"/> <xs:element ref="Include_command_menu2"/> <xs:element ref="Command_menu_name2"/> <xs:element ref="Command_menu3"/> <xs:element ref="Include_command_menu3"/> <xs:element ref="Command_menu_name3"/> <xs:element ref="Model_start_diag"/> <xs:element ref="Model_close_diag"/> </xs:choice> </xs:complexType> </xs:element>

Disp_width
diagram
type	xs:string
used by	element SimulationObjects
source	<xs:element name="Disp_width" type="xs:string"/>

DisplayData
diagram
children	Displaytype X1 Y1 X2 Y2 Xinc Yinc TitleOffsetX TitleOffsetY TitleWidth Invisible Showtitle Showcount Showimage Showworkitem CmImageOnDisplay Color1 Color2 Image0 Image1 Image2 Image3 Image4 VR_x VR_y VR_z Orientation ScaleX ScaleY ScaleZ ColorRValue ColorGValue ColorBValue
used by	element SimulationObjects
source	<xs:element name="DisplayData"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="Displaytype"/> <xs:element ref="X1"/> <xs:element ref="Y1"/> <xs:element ref="X2"/> <xs:element ref="Y2"/> <xs:element ref="Xinc"/> <xs:element ref="Yinc"/> <xs:element ref="TitleOffsetX"/> <xs:element ref="TitleOffsetY"/> <xs:element ref="TitleWidth"/> <xs:element ref="Invisible"/> <xs:element ref="Showtitle"/> <xs:element ref="Showcount"/> <xs:element ref="Showimage"/> <xs:element ref="Showworkitem"/> <xs:element ref="CmImageOnDisplay"/> <xs:element ref="Color1"/> <xs:element ref="Color2"/> <xs:element ref="Image0"/> <xs:element ref="Image1"/> <xs:element ref="Image2"/> <xs:element ref="Image3"/> <xs:element ref="Image4"/> <xs:element ref="VR_x"/> <xs:element ref="VR_y"/> <xs:element ref="VR_z"/> <xs:element ref="Orientation"/> <xs:element ref="ScaleX"/> <xs:element ref="ScaleY"/> <xs:element ref="ScaleZ"/> <xs:element ref="ColorRValue"/> <xs:element ref="ColorGValue"/> <xs:element ref="ColorBValue"/> </xs:choice> </xs:complexType> </xs:element>

DisplayOffsetX
diagram
type	xs:string
used by	element ResourceItem
source	<xs:element name="DisplayOffsetX" type="xs:string"/>

DisplayOffsetY
diagram
type	xs:string
used by	element ResourceItem
source	<xs:element name="DisplayOffsetY" type="xs:string"/>

Displaytype

diagram

type

xs:string

used by

elements

DefaultConveyorDisplayData DefaultLoadDisplayData DefaultMachineDisplayData DefaultProcessDisplayData DefaultResource DisplayData DefaultStorageDisplayData DefaultTankDisplayData DefaultWorkEntryDisplayData DefaultWorkExitDisplayData DisplayData

source

<xs:element name="Displaytype" type="xs:string"/>

DisplayWithWorkX
diagram
type	xs:string
used by	element SimulationObjects
source	<xs:element name="DisplayWithWorkX" type="xs:string"/>

DisplayWithWorkY
diagram
type	xs:string
used by	element SimulationObjects
source	<xs:element name="DisplayWithWorkY" type="xs:string"/>

Distance
diagram
type	xs:string
used by	Units
source	<xs:element name="Distance" type="xs:string"/>

DistParam1

diagram

type

xs:string

used by

elements

batchsizeoutSampleData changeOverSampleData flowtimeSampleData gaptimeSampleData InterArrivalTimeSampleData LabelActionSampleData MTBFSampleData MTTRSampleData OperationTimeSampleData SampleData

source

<xs:element name="DistParam1" type="xs:string"/>

DistParam1Calc

diagram

type

xs:string

used by

elements

changeOverSampleData Distribution InterArrivalTimeSampleData LabelActionSampleData MTBFSampleData MTTRSampleData OperationTimeSampleData SampleData

source

<xs:element name="DistParam1Calc" type="xs:string"/>

DistParam2

diagram

type

xs:string

used by

elements

batchsizeoutSampleData changeOverSampleData flowtimeSampleData gaptimeSampleData InterArrivalTimeSampleData LabelActionSampleData MTBFSampleData MTTRSampleData OperationTimeSampleData SampleData

source

<xs:element name="DistParam2" type="xs:string"/>

DistParam2Calc

diagram

type

xs:string

used by

elements

Distribution InterArrivalTimeSampleData LabelActionSampleData MTBFSampleData MTTRSampleData OperationTimeSampleData SampleData

source

<xs:element name="DistParam2Calc" type="xs:string"/>

DistParam3

diagram

type

xs:string

used by

elements

batchsizeoutSampleData changeOverSampleData flowtimeSampleData gaptimeSampleData InterArrivalTimeSampleData LabelActionSampleData MTBFSampleData MTTRSampleData OperationTimeSampleData SampleData

source

<xs:element name="DistParam3" type="xs:string"/>

DistParam3Calc

diagram

type

xs:string

used by

elements

Distribution InterArrivalTimeSampleData LabelActionSampleData MTBFSampleData MTTRSampleData OperationTimeSampleData SampleData

source

<xs:element name="DistParam3Calc" type="xs:string"/>

DistParam4

diagram

type

xs:string

used by

elements

batchsizeoutSampleData changeOverSampleData flowtimeSampleData gaptimeSampleData InterArrivalTimeSampleData LabelActionSampleData MTBFSampleData MTTRSampleData OperationTimeSampleData SampleData

source

<xs:element name="DistParam4" type="xs:string"/>

DistParam4Calc

diagram

type

xs:string

used by

elements

Distribution InterArrivalTimeSampleData LabelActionSampleData MTBFSampleData MTTRSampleData OperationTimeSampleData SampleData

source

<xs:element name="DistParam4Calc" type="xs:string"/>

DistrbutionType
diagram
type	xs:string
used by	element Distribution
source	<xs:element name="DistrbutionType" type="xs:string"/>

DistribType

diagram

type

xs:string

used by

elements

batchsizeoutSampleData changeOverSampleData flowtimeSampleData gaptimeSampleData InterArrivalTimeSampleData LabelActionSampleData MTBFSampleData MTTRSampleData OperationTimeSampleData SampleData

source

<xs:element name="DistribType" type="xs:string"/>

Distribution

diagram

children

DistrbutionType Submode1 Submode2 Submode3 Submode4 Trace UpperBound SampleData DistParam1Calc DistParam2Calc DistParam3Calc DistParam4Calc ProfileCells

used by

element Distribution

attributes

Name	Type	Use	Default	Fixed	Annotation
Name	xs:string	required
ID	xs:string	required

source

<xs:element name="Distribution">
  <xs:complexType mixed="true">
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <xs:element ref="DistrbutionType"/>
      <xs:element ref="Submode1"/>
      <xs:element ref="Submode2"/>
      <xs:element ref="Submode3"/>
      <xs:element ref="Submode4"/>
      <xs:element ref="Trace"/>
      <xs:element ref="UpperBound"/>
      <xs:element ref="SampleData"/>
      <xs:element ref="DistParam1Calc"/>
      <xs:element ref="DistParam2Calc"/>
      <xs:element ref="DistParam3Calc"/>
      <xs:element ref="DistParam4Calc"/>
      <xs:element ref="ProfileCells"/>
    </xs:choice>
    <xs:attribute name="Name" type="xs:string" use="required"/>
    <xs:attribute name="ID" type="xs:string" use="required"/>
  </xs:complexType>
</xs:element>

Distributions
diagram
children	Distribution
used by	element Randomness
source	<xs:element name="Distributions"> <xs:complexType> <xs:sequence> <xs:element ref="Distribution" minOccurs="0" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element>

DrawObject
diagram
children	Typecode location Color1 Color2 Linethickness Thetext Thevar Name Height Color URL Fsunderline Fsbold Fsitalic Image_Data Lstyle
used by	element DrawObjects
source	<xs:element name="DrawObject"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="Typecode"/> <xs:element ref="location"/> <xs:element ref="Color1"/> <xs:element ref="Color2"/> <xs:element ref="Linethickness"/> <xs:element ref="Thetext"/> <xs:element ref="Thevar"/> <xs:element ref="Name"/> <xs:element ref="Height"/> <xs:element ref="Color"/> <xs:element ref="URL"/> <xs:element ref="Fsunderline"/> <xs:element ref="Fsbold"/> <xs:element ref="Fsitalic"/> <xs:element ref="Image_Data"/> <xs:element ref="Lstyle"/> </xs:choice> </xs:complexType> </xs:element>

DrawObjects
diagram
children	DrawObject
used by	element SIMUL8Window
source	<xs:element name="DrawObjects"> <xs:complexType> <xs:sequence> <xs:element ref="DrawObject" minOccurs="0" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element>

EndLocation
diagram
children	X Y
used by	element AdditionalSegment
source	<xs:element name="EndLocation"> <xs:complexType> <xs:sequence> <xs:element ref="X"/> <xs:element ref="Y"/> </xs:sequence> </xs:complexType> </xs:element>

Environment
diagram	source _Link0B006888">
children	AlwaysShowArrows AlwaysShowSubWindows ShowAllLinks AutoBinTitles NewGroupOnDuplication AutoLink PrintToFitPages PrinterZoomWidth PrinterZoomHeight GraphExportIncludeTitles GraphUpdateInterval ApplyReverseResourceTravelTimes Clock SimulationAssistant AutoTransitLink ContentsIndicatorSource ShowTimeBasedAnimation ShowCycleMatrixAnimation ShowZeroTimeAnimation DefaultToFastsave
used by	element SIMUL8XML
source	<xs:element name="Environment"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="AlwaysShowArrows"/> <xs:element ref="AlwaysShowSubWindows"/> <xs:element ref="ShowAllLinks"/> <xs:element ref="AutoBinTitles"/> <xs:element ref="NewGroupOnDuplication"/> <xs:element ref="AutoLink"/> <xs:element ref="PrintToFitPages"/> <xs:element ref="PrinterZoomWidth"/> <xs:element ref="PrinterZoomHeight"/> <xs:element ref="GraphExportIncludeTitles"/> <xs:element ref="GraphUpdateInterval"/> <xs:element ref="ApplyReverseResourceTravelTimes"/> <xs:element ref="Clock"/> <xs:element ref="SimulationAssistant"/> <xs:element ref="AutoTransitLink"/> <xs:element ref="ContentsIndicatorSource"/> <xs:element ref="ShowTimeBasedAnimation"/> <xs:element ref="ShowCycleMatrixAnimation"/> <xs:element ref="ShowZeroTimeAnimation"/> <xs:element ref="DefaultToFastsave"/> </xs:choice> </xs:complexType> </xs:element>

Everyresult
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Everyresult" type="xs:string"/>

ExitWorkType
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="ExitWorkType" type="xs:string"/>

Expiretime
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Expiretime" type="xs:string"/>

ExtendTimeForWorkCompletion
diagram
type	xs:string
used by	element BreakDowns
source	<xs:element name="ExtendTimeForWorkCompletion" type="xs:string"/>

ExternalLinks
diagram
children	Vbxtimeint Vbxtimestart Vbxmin Usevba Xlxcellsheet Xlxcell
used by	element FileParameters
source	<xs:element name="ExternalLinks"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="Vbxtimeint"/> <xs:element ref="Vbxtimestart"/> <xs:element ref="Vbxmin"/> <xs:element ref="Usevba"/> <xs:element ref="Xlxcellsheet"/> <xs:element ref="Xlxcell"/> </xs:choice> </xs:complexType> </xs:element>

element Extra_type_info
diagram
type	xs:string
used by	elements SimulationObject
source	<xs:element name="Extra_type_info" type="xs:string"/>

Face
diagram
type	xs:string
used by	element Clock
source	<xs:element name="Face" type="xs:string"/>

FileParameters
diagram
children	S8FileVersion S8FileName S8SaveFlags Title ShowTitle Currency Notes S8Licensing Build MinimumBuild CreatedInBuild ExternalLinks
used by	element SIMUL8XML
source	<xs:element name="FileParameters"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="S8FileVersion"/> <xs:element ref="S8FileName"/> <xs:element ref="S8SaveFlags"/> <xs:element ref="Title"/> <xs:element ref="ShowTitle"/> <xs:element ref="Currency"/> <xs:element ref="Notes"/> <xs:element ref="S8Licensing"/> <xs:element ref="Build"/> <xs:element ref="MinimumBuild"/> <xs:element ref="CreatedInBuild"/> <xs:element ref="ExternalLinks"/> </xs:choice> </xs:complexType> </xs:element>

Finance
diagram
children	CapitalCost UnitCost TimeCost OtherCost OtherRevenue
used by	elements SimulationObject SimulationParameters
source	<xs:element name="Finance"> <xs:complexType> <xs:sequence> <xs:element ref="CapitalCost" minOccurs="0" maxOccurs="unbounded"/> <xs:element ref="UnitCost" minOccurs="0"/> <xs:element ref="TimeCost" minOccurs="0"/> <xs:element ref="OtherCost" minOccurs="0"/> <xs:element ref="OtherRevenue" minOccurs="0"/> </xs:sequence> </xs:complexType> </xs:element>

FirstatZero
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="FirstatZero" type="xs:string"/>

Firstchild
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Firstchild" type="xs:string"/>

Fixed_prod_type
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Fixed_prod_type" type="xs:string"/>

Flow_units_text
diagram
type	xs:string
used by	element Units
source	<xs:element name="Flow_units_text" type="xs:string"/>

Flow_units_text2
diagram
type	xs:string
used by	element Units
source	<xs:element name="Flow_units_text2" type="xs:string"/>

flowtimeSampleData
diagram
children	Userates DistParam1 DistParam2 DistParam3 DistParam4 DistribType RNSubStream ReferencedDistribution
used by	SimulationObject
source	<xs:element name="flowtimeSampleData"> <xs:complexType> <xs:sequence> <xs:element ref="Userates"/> <xs:element ref="DistParam1"/> <xs:element ref="DistParam2"/> <xs:element ref="DistParam3"/> <xs:element ref="DistParam4"/> <xs:element ref="DistribType"/> <xs:element ref="RNSubStream"/> <xs:element ref="ReferencedDistribution"/> </xs:sequence> </xs:complexType> </xs:element>

Foundroute
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Foundroute" type="xs:string"/>

FromObject
diagram
type	xs:string
used by	DetailedLog
source	<xs:element name="FromObject" type="xs:string"/>

FromSimulationObject
diagram
type	xs:string
used by	element TravelLink
source	<xs:element name="FromSimulationObject" type="xs:string"/>

FromUseEntryTime
diagram
type	xs:string
used by	DetailedLog
source	<xs:element name="FromUseEntryTime" type="xs:string"/>

Fsbold
diagram
type	xs:string
used by	element DrawObject
source	<xs:element name="Fsbold" type="xs:string"/>

Fsitalic
diagram
type	xs:string
used by	element DrawObject
source	<xs:element name="Fsitalic" type="xs:string"/>

Fsunderline
diagram
type	xs:string
used by	element DrawObject
source	<xs:element name="Fsunderline" type="xs:string"/>

gaptimeSampleData
diagram
children	Userates DistParam1 DistParam2 DistParam3 DistParam4 DistribType RNSubStream ReferencedDistribution
used by	SimulationObject
source	<xs:element name="gaptimeSampleData"> <xs:complexType> <xs:sequence> <xs:element ref="Userates"/> <xs:element ref="DistParam1"/> <xs:element ref="DistParam2"/> <xs:element ref="DistParam3"/> <xs:element ref="DistParam4"/> <xs:element ref="DistribType"/> <xs:element ref="RNSubStream"/> <xs:element ref="ReferencedDistribution"/> </xs:sequence> </xs:complexType> </xs:element>

GraphicsObjects
diagram
children	WindowObjects ImageObjects DialogObjects DefaultMachineDisplayData DefaultWorkEntryDisplayData DefaultWorkExitDisplayData DefaultStorageDisplayData DefaultResource DisplayData DefaultConveyorDisplayData DefaultTankDisplayData DefaultProcessDisplayData DefaultLoadDisplayData VisioMaxY VisioPixelsPerUnit
used by	element SIMUL8XML
source	<xs:element name="GraphicsObjects"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="WindowObjects"/> <xs:element ref="ImageObjects"/> <xs:element ref="DialogObjects"/> <xs:element ref="DefaultMachineDisplayData"/> <xs:element ref="DefaultWorkEntryDisplayData"/> <xs:element ref="DefaultWorkExitDisplayData"/> <xs:element ref="DefaultStorageDisplayData"/> <xs:element ref="DefaultResourceDisplayData"/> <xs:element ref="DefaultConveyorDisplayData"/> <xs:element ref="DefaultTankDisplayData"/> <xs:element ref="DefaultProcessDisplayData"/> <xs:element ref="DefaultLoadDisplayData"/> <xs:element ref="VisioMaxY"/> <xs:element ref="VisioPixelsPerUnit"/> </xs:choice> </xs:complexType> </xs:element>

GraphUpdateInterval
diagram
type	xs:string
used by	element Environment
source	<xs:element name="GraphUpdateInterval" type="xs:string"/>

Group

diagram

children

WorkItemLimit CollectResults SwimLaneHeight Bgcolor GroupResource Members

used by

element Groups

attributes

Name	Type	Use	Default	Fixed	Annotation
Name	xs:string
ID	xs:string

source

<xs:element name="Group">
  <xs:complexType mixed="true">
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <xs:element ref="WorkItemLimit"/>
      <xs:element ref="CollectResults"/>
      <xs:element ref="SwimLaneHeight"/>
      <xs:element ref="Bgcolor"/>
      <xs:element ref="GroupResource"/>
      <xs:element ref="Members"/>
    </xs:choice>
    <xs:attribute name="Name" type="xs:string"/>
    <xs:attribute name="ID" type="xs:string"/>
  </xs:complexType>
</xs:element>

GroupMember
diagram
type	xs:string
used by	element Members
source	<xs:element name="GroupMember" type="xs:string"/>

GroupResource
diagram
type	xs:string
used by	element Group
source	<xs:element name="GroupRe source " type="xs:string"/>

Groups
diagram
children	Group
used by	SimulationObject
source	<xs:element name="Groups"> <xs:complexType> <xs:sequence> <xs:element ref="Group" minOccurs="0" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element>

Height
diagram
type	xs:string
used by	elements DrawObject Image
source	<xs:element name="Height" type="xs:string"/>

HHMMSScode
diagram
type	xs:string
used by	element Clock
source	<xs:element name="HHMMSScode" type="xs:string"/>

HideLostWarning
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="HideLostWarning" type="xs:string"/>

Hidemain
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Hidemain" type="xs:string"/>

Hidesubs
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Hidesubs" type="xs:string"/>

HighVol
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="HighVol" type="xs:string"/>

Highvol
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Highvol" type="xs:string"/>

HoldOrReleaseCode
diagram
type	xs:string
used by	element ResourceItem
source	<xs:element name="HoldOrReleaseCode" type="xs:string"/>

HVbatch
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="HVbatch" type="xs:string"/>

IgnoreBlockedRoutes
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="IgnoreBlockedRoutes" type="xs:string"/>

IgnoreLargeBatchWarnings
diagram
type	xs:string
used by	element SimulationParameters
source	<xs:element name="IgnoreLargeBatchWarnings" type="xs:string"/>

IgnoreStarvedRoutes
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="IgnoreStarvedRoutes" type="xs:string"/>


diagram

children

Imagetype Width Height Transparent TransparentColor Vr_imagename Image_Data

used by

element ImageObjects

attributes

Name	Type	Use	Default	Fixed	Annotation
Name	xs:string	required
ID	xs:string	required

source

<xs:element name="Image">
  <xs:complexType mixed="true">
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <xs:element ref="Imagetype"/>
      <xs:element ref="Width"/>
      <xs:element ref="Height"/>
      <xs:element ref="Transparent"/>
      <xs:element ref="TransparentColor"/>
      <xs:element ref="Vr_imagename"/>
      <xs:element ref="Image_Data"/>
    </xs:choice>
    <xs:attribute name="Name" type="xs:string" use="required"/>
    <xs:attribute name="ID" type="xs:string" use="required"/>
  </xs:complexType>
</xs:element>

diagram
type	xs:string
used by	elements DisplayData WorkItemType
source	<xs:element name="Image0" type="xs:string"/>

diagram
type	xs:string
used by	element DisplayData
source	<xs:element name="Image1" type="xs:string"/>

diagram
type	xs:string
used by	element DisplayData
source	<xs:element name="Image2" type="xs:string"/>

diagram
type	xs:string
used by	element DisplayData
source	<xs:element name="Image3" type="xs:string"/>

diagram
type	xs:string
used by	element DisplayData
source	<xs:element name="Image4" type="xs:string"/>

Image_Data
diagram
type	xs:string
used by	elements DrawObject Image
source	<xs:element name="Image_Data" type="xs:string"/>

ImageObjects
diagram
children	Image
used by	element GraphicsObjects
source	<xs:element name="ImageObjects"> <xs:complexType> <xs:sequence> <xs:element ref="Image" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element>

Imagetype
diagram
type	xs:string
used by	element Image
source	<xs:element name="Imagetype" type="xs:string"/>

Include_command_menu1
diagram
type	xs:string
used by	element DialogObjects
source	<xs:element name="Include_command_menu1" type="xs:string"/>

Include_command_menu2
diagram
type	xs:string
used by	element DialogObjects
source	<xs:element name="Include_command_menu2" type="xs:string"/>

Include_command_menu3
diagram
type	xs:string
used by	element DialogObjects
source	<xs:element name="Include_command_menu3" type="xs:string"/>

Include_label_display
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Include_label_display" type="xs:string"/>

IncludeCost
diagram
type	xs:string
used by	element DetailedLog
source	<xs:element name="IncludeCost" type="xs:string"/>

IncludeLabel
diagram
type	xs:string
used by	element DetailedLog
source	<xs:element name="IncludeLabel" type="xs:string"/>

Index
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Index" type="xs:string"/>

IndexingGroup
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="IndexingGroup" type="xs:string"/>

InitialConts
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="InitialConts" type="xs:string"/>

InputList
diagram
children	Link
used by	SimulationObject
source	<xs:element name="InputList"> <xs:complexType> <xs:sequence> <xs:element ref="Link" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element>

InputRequiredOnOutput
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="InputRequiredOnOutput" type="xs:string"/>

InRoutemode
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="InRoutemode" type="xs:string"/>

InterArrivalTimeSampleData
diagram
children	Userates DistParam1 DistParam2 DistParam3 DistParam4 DistribType RNSubStream DistParam1Calc DistParam2Calc DistParam3Calc DistParam4Calc ReferencedDistribution
used by	SimulationObject
source	<xs:element name="InterArrivalTimeSampleData"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="Userates"/> <xs:element ref="DistParam1"/> <xs:element ref="DistParam2"/> <xs:element ref="DistParam3"/> <xs:element ref="DistParam4"/> <xs:element ref="DistribType"/> <xs:element ref="RNSubStream"/> <xs:element ref="DistParam1Calc"/> <xs:element ref="DistParam2Calc"/> <xs:element ref="DistParam3Calc"/> <xs:element ref="DistParam4Calc"/> <xs:element ref="ReferencedDistribution"/> </xs:choice> </xs:complexType> </xs:element>

InterObjectTravel
diagram
children	TravelLink
used by	element Travel
source	<xs:element name="InterObjectTravel"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="TravelLink"/> </xs:choice> </xs:complexType> </xs:element>

InterruptonStorage
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="InterruptonStorage" type="xs:string"/>

Invisible

diagram

type

xs:string

used by

elements

source

<xs:element name="Invisible" type="xs:string"/>

ItemType
diagram
type	xs:string
used by	element DialogItem
source	<xs:element name="ItemType" type="xs:string"/>

Label

diagram

type

extension of xs:string

used by

elements LabelAction SimulationObjects WorkItemType

attributes

Name	Type	Use	Default	Fixed	Annotation
ID	xs:string
Name	xs:string
Type	xs:string

source

<xs:element name="Label">
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="xs:string">
        <xs:attribute name="ID" type="xs:string"/>
        <xs:attribute name="Name" type="xs:string"/>
        <xs:attribute name="Type" type="xs:string"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

LabelAction

diagram

children

ActionCode Label LabelActionSampleData TextValue

used by

LabelActions

attributes

Name	Type	Use	Default	Fixed	Annotation
Position	xs:string	required

source

<xs:element name="LabelAction">
  <xs:complexType mixed="true">
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <xs:element ref="ActionCode"/>
      <xs:element ref="Label"/>
      <xs:element ref="LabelActionSampleData"/>
      <xs:element ref="TextValue"/>
    </xs:choice>
    <xs:attribute name="Position" type="xs:string" use="required"/>
  </xs:complexType>
</xs:element>

LabelActions
diagram
children	LabelAction
used by	SimulationObject
source	<xs:element name="LabelActions"> <xs:complexType> <xs:sequence> <xs:element ref="LabelAction" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element>

LabelActionSampleData
diagram
children	Userates DistParam1 DistParam2 DistParam3 DistParam4 DistribType RNSubStream DistParam1Calc DistParam2Calc DistParam3Calc DistParam4Calc ReferencedDistribution
used by	element LabelAction
source	<xs:element name="LabelActionSampleData"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="Userates"/> <xs:element ref="DistParam1"/> <xs:element ref="DistParam2"/> <xs:element ref="DistParam3"/> <xs:element ref="DistParam4"/> <xs:element ref="DistribType"/> <xs:element ref="RNSubStream"/> <xs:element ref="DistParam1Calc"/> <xs:element ref="DistParam2Calc"/> <xs:element ref="DistParam3Calc"/> <xs:element ref="DistParam4Calc"/> <xs:element ref="ReferencedDistribution"/> </xs:choice> </xs:complexType> </xs:element>

Lastroute
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Lastroute" type="xs:string"/>

Left
diagram
type	xs:string
used by	elements location Minposition Position
source	<xs:element name="Left" type="xs:string"/>

Length
diagram
type	xs:string
used by	element WorkItemType
source	<xs:element name="Length" type="xs:string"/>

LengthOfDay
diagram
type	xs:string
used by	element Clock
source	<xs:element name="LengthOfDay" type="xs:string"/>

LIFO
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="LIFO" type="xs:string"/>

Linethickness
diagram
type	xs:string
used by	DrawObject
source	<xs:element name="Linethickness" type="xs:string"/>

Link
diagram
children	S8TheType S8ObjectType ObjectID Percent Requnits Transitlink S8sparei
used by	elements InputList OutputList
source	<xs:element name="Link"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="S8TheType"/> <xs:element ref="S8ObjectType"/> <xs:element ref="ObjectID"/> <xs:element ref="Percent"/> <xs:element ref="Requnits"/> <xs:element ref="Transitlink"/> <xs:element ref="S8sparei"/> </xs:choice> </xs:complexType> </xs:element>

location
diagram
children	Left Top Right Bottom
used by	DrawObject
source	<xs:element name="location"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="Left"/> <xs:element ref="Top"/> <xs:element ref="Right"/> <xs:element ref="Bottom"/> </xs:choice> </xs:complexType> </xs:element>

Lock_display_length
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Lock_display_length" type="xs:string"/>

LogicObjects
diagram
children	Variable MainDataSheet Call_VisualLogic_On_sheet_button_code Call_VisualLogic_On_simulation_open_code Call_VisualLogic_Time_check_code Call_VisualLogic_Reset_code Call_VisualLogic_End_run_code LogicSection
used by	element SIMUL8XML
source	<xs:element name="LogicObjects"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="Variable"/> <xs:element ref="MainDataSheet"/> <xs:element ref="Call_VisualLogic_On_sheet_button_code"/> <xs:element ref="Call_VisualLogic_On_simulation_open_code"/> <xs:element ref="Call_VisualLogic_Time_check_code"/> <xs:element ref="Call_VisualLogic_Reset_code"/> <xs:element ref="Call_VisualLogic_End_run_code"/> <xs:element ref="LogicSection"/> </xs:choice> </xs:complexType> </xs:element>

LogicRNSubStream
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="LogicRNSubStream" type="xs:string"/>

LogicSection

diagram

children

used by

element LogicObjects

attributes

Name	Type	Use	Default	Fixed	Annotation
ID	xs:string	required

source

<xs:element name="LogicSection">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="VL" maxOccurs="unbounded"/>
    </xs:sequence>
    <xs:attribute name="ID" type="xs:string" use="required"/>
  </xs:complexType>
</xs:element>

LowerBound
diagram
type	xs:string
source	<xs:element name="LowerBound" type="xs:string"/>

Lstyle
diagram
type	xs:string
used by	DrawObject
source	<xs:element name="Lstyle" type="xs:string"/>

MainDataSheet
diagram
type	xs:string
used by	element LogicObjects
source	<xs:element name="MainDataSheet" type="xs:string"/>

MainHeight
diagram
type	xs:string
used by	element WindowObjects
source	<xs:element name="MainHeight" type="xs:string"/>

MainTop
diagram
type	xs:string
used by	element WindowObjects
source	<xs:element name="MainTop" type="xs:string"/>

MainWidth
diagram
type	xs:string
used by	element WindowObjects
source	<xs:element name="MainWidth" type="xs:string"/>

Matchatt
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Matchatt" type="xs:string"/>

Maxattbat
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Maxattbat" type="xs:string"/>

Maxconts
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Maxconts" type="xs:string"/>

MaxConts
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="MaxConts" type="xs:string"/>

Maxlimit
diagram
type	xs:string
used by	element ResultItem
source	<xs:element name="Maxlimit" type="xs:string"/>

MaxNumber
diagram
type	xs:string
used by	element ResourceItem
source	<xs:element name="MaxNumber" type="xs:string"/>

MaxRange
diagram
type	xs:string
used by	element DialogItem
source	<xs:element name="MaxRange" type="xs:string"/>

Member
diagram
type	xs:string
used by	element PoolMember
source	<xs:element name="Member" type="xs:string"/>

Members
diagram
children	GroupMember
used by	element Group
source	<xs:element name="Members"> <xs:complexType> <xs:sequence> <xs:element ref="GroupMember" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element>

Min_wait_timeCalc
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Min_wait_timeCalc" type="xs:string"/>

Minattbat
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Minattbat" type="xs:string"/>

MinimumBuild
diagram
type	xs:string
used by	element FileParameters
source	<xs:element name="MinimumBuild" type="xs:string"/>

MinimumRepairTime
diagram
type	xs:string
used by	elements BreakDowns BreakDownType
source	<xs:element name="MinimumRepairTime" type="xs:string"/>

Minlimit
diagram
type	xs:string
used by	element ResultItem
source	<xs:element name="Minlimit" type="xs:string"/>

MinNumber
diagram
type	xs:string
used by	element ResourceItem
source	<xs:element name="MinNumber" type="xs:string"/>

Minposition
diagram
children	Left Top Right Bottom
used by	element SIMUL8Window
source	<xs:element name="Minposition"> <xs:complexType> <xs:sequence> <xs:element ref="Left"/> <xs:element ref="Top"/> <xs:element ref="Right"/> <xs:element ref="Bottom"/> </xs:sequence> </xs:complexType> </xs:element>

MinRange
diagram
type	xs:string
used by	element DialogItem
source	<xs:element name="MinRange" type="xs:string"/>

Model_close_diag
diagram
type	xs:string
used by	element DialogObjects
source	<xs:element name="Model_close_diag" type="xs:string"/>

Model_start_diag
diagram
type	xs:string
used by	element DialogObjects
source	<xs:element name="Model_start_diag" type="xs:string"/>

Model_warm_up_set
diagram
type	xs:string
used by	element SimulationAssistant
source	<xs:element name="Model_warm_up_set" type="xs:string"/>

MTBF_mode
diagram
type	xs:string
used by	elements BreakDowns BreakDownType
source	<xs:element name="MTBF_mode" type="xs:string"/>

MTBFSampleData
diagram
children	Userates DistParam1 DistParam2 DistParam3 DistParam4 DistribType RNSubStream ReferencedDistribution DistParam1Calc DistParam2Calc DistParam3Calc DistParam4Calc
used by	elements BreakDowns BreakDownType
source	<xs:element name="MTBFSampleData"> <xs:complexType> <xs:sequence> <xs:element ref="Userates" minOccurs="0"/> <xs:element ref="DistParam1" minOccurs="0"/> <xs:element ref="DistParam2" minOccurs="0"/> <xs:element ref="DistParam3" minOccurs="0"/> <xs:element ref="DistParam4" minOccurs="0"/> <xs:element ref="DistribType" minOccurs="0"/> <xs:element ref="RNSubStream" minOccurs="0"/> <xs:element ref="ReferencedDistribution" minOccurs="0"/> <xs:element ref="DistParam1Calc" minOccurs="0"/> <xs:element ref="DistParam2Calc" minOccurs="0"/> <xs:element ref="DistParam3Calc" minOccurs="0"/> <xs:element ref="DistParam4Calc" minOccurs="0"/> </xs:sequence> </xs:complexType> </xs:element>

MTTRSampleData
diagram
children	Userates DistParam1 DistParam2 DistParam3 DistParam4 DistribType RNSubStream ReferencedDistribution DistParam1Calc DistParam2Calc DistParam3Calc DistParam4Calc
used by	elements BreakDowns BreakDownType
source	<xs:element name="MTTRSampleData"> <xs:complexType> <xs:sequence> <xs:element ref="Userates" minOccurs="0"/> <xs:element ref="DistParam1" minOccurs="0"/> <xs:element ref="DistParam2" minOccurs="0"/> <xs:element ref="DistParam3" minOccurs="0"/> <xs:element ref="DistParam4" minOccurs="0"/> <xs:element ref="DistribType" minOccurs="0"/> <xs:element ref="RNSubStream" minOccurs="0"/> <xs:element ref="ReferencedDistribution" minOccurs="0"/> <xs:element ref="DistParam1Calc" minOccurs="0"/> <xs:element ref="DistParam2Calc" minOccurs="0"/> <xs:element ref="DistParam3Calc" minOccurs="0"/> <xs:element ref="DistParam4Calc" minOccurs="0"/> </xs:sequence> </xs:complexType> </xs:element>

MustBeNumber
diagram
type	xs:string
used by	element DialogItem
source	<xs:element name="MustBeNumber" type="xs:string"/>

Name
diagram
type	xs:string
used by	DrawObject
source	<xs:element name="Name" type="xs:string"/>

NewGroupOnDuplication
diagram
type	xs:string
used by	Environment
source	<xs:element name="NewGroupOnDuplication" type="xs:string"/>

Nextasfinish
diagram
type	xs:string
used by	element Dialog
source	<xs:element name="Nextasfinish" type="xs:string"/>

NextInComponent
diagram
type	xs:string
used by	element ComponentData
source	<xs:element name="NextInComponent" type="xs:string"/>

NextOnMenu
diagram
type	xs:string
used by	element Dialog
source	<xs:element name="NextOnMenu" type="xs:string"/>

Noadvice
diagram
type	xs:string
used by	element SimulationAssistant
source	<xs:element name="Noadvice" type="xs:string"/>

Notes
diagram
type	xs:string
used by	elements SimulationObject FileParameters
source	<xs:element name="Notes" type="xs:string"/>

ObjectCalc
diagram
type	xs:string
used by	element DialogItem
source	<xs:element name="ObjectCalc" type="xs:string"/>

ObjectID
diagram
type	xs:string
used by	elements Link ResultItem
source	<xs:element name="ObjectID" type="xs:string"/>

OEM_XML
diagram
used by	SimulationObject
source	<xs:element name="OEM_XML"> <xs:complexType mixed="true"/> </xs:element>

Opendirect
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Opendirect" type="xs:string"/>

OpenState
diagram
type	xs:string
used by	element SIMUL8Window
source	<xs:element name="OpenState" type="xs:string"/>

OperationTimeSampleData
diagram
children	Userates DistParam1 DistParam2 DistParam3 DistParam4 DistribType RNSubStream ReferencedDistribution DistParam1Calc DistParam2Calc DistParam3Calc DistParam4Calc
used by	SimulationObject
source	<xs:element name="OperationTimeSampleData"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="Userates"/> <xs:element ref="DistParam1"/> <xs:element ref="DistParam2"/> <xs:element ref="DistParam3"/> <xs:element ref="DistParam4"/> <xs:element ref="DistribType"/> <xs:element ref="RNSubStream"/> <xs:element ref="ReferencedDistribution"/> <xs:element ref="DistParam1Calc"/> <xs:element ref="DistParam2Calc"/> <xs:element ref="DistParam3Calc"/> <xs:element ref="DistParam4Calc"/> </xs:choice> </xs:complexType> </xs:element>

Ori_11
diagram
type	xs:string
used by	element Orientation
source	<xs:element name="Ori_11" type="xs:string"/>

Ori_22
diagram
type	xs:string
used by	element Orientation
source	<xs:element name="Ori_22" type="xs:string"/>

Ori_33
diagram
type	xs:string
used by	element Orientation
source	<xs:element name="Ori_33" type="xs:string"/>

Ori_44
diagram
type	xs:string
used by	element Orientation
source	<xs:element name="Ori_44" type="xs:string"/>

Orientation

diagram

children

Ori_11 Ori_22 Ori_33 Ori_44

used by

elements

source

<xs:element name="Orientation">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="Ori_11" minOccurs="0"/>
      <xs:element ref="Ori_22" minOccurs="0"/>
      <xs:element ref="Ori_33" minOccurs="0"/>
      <xs:element ref="Ori_44" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

OtherCost
diagram
type	xs:string
used by	element Finance
source	<xs:element name="OtherCost" type="xs:string"/>

OtherRevenue
diagram
type	xs:string
used by	element Finance
source	<xs:element name="OtherRevenue" type="xs:string"/>

Others_diag
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Others_diag" type="xs:string"/>

OutputList
diagram
children	Link
used by	SimulationObject
source	<xs:element name="OutputList"> <xs:complexType> <xs:sequence> <xs:element ref="Link" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element>

Percent
diagram
type	xs:string
used by	element Link
source	<xs:element name="Percent" type="xs:string"/>

Percent_limit
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Percent_limit" type="xs:string"/>

PoolMember

diagram

children

Member

used by

PoolMembers

attributes

Name	Type	Use	Default	Fixed	Annotation
Position	xs:string	required

source

<xs:element name="PoolMember">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="Member"/>
    </xs:sequence>
    <xs:attribute name="Position" type="xs:string" use="required"/>
  </xs:complexType>
</xs:element>

PoolMembers
diagram
children	PoolMember
used by	SimulationObject
source	<xs:element name="PoolMembers"> <xs:complexType> <xs:sequence> <xs:element ref="PoolMember" minOccurs="0" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element>

Position
diagram
children	Left Top Right Bottom
used by	SIMUL8Window
source	<xs:element name="Position"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="Left"/> <xs:element ref="Top"/> <xs:element ref="Right"/> <xs:element ref="Bottom"/> </xs:choice> </xs:complexType> </xs:element>

Pref_shifted_random_route
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Pref_shifted_random_route" type="xs:string"/>

Preference_route
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Preference_route" type="xs:string"/>

PrinterZoomHeight
diagram
type	xs:string
used by	element Environment
source	<xs:element name="PrinterZoomHeight" type="xs:string"/>

PrinterZoomWidth
diagram
type	xs:string
used by	element Environment
source	<xs:element name="PrinterZoomWidth" type="xs:string"/>

PrintToFitPages
diagram
type	xs:string
used by	element Environment
source	<xs:element name="PrintToFitPages" type="xs:string"/>

Priority
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Priority" type="xs:string"/>

PriorityLabel
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="PriorityLabel" type="xs:string"/>

PriorityMode
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="PriorityMode" type="xs:string"/>

Prod_type_att
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Prod_type_att" type="xs:string"/>

ProfileCells
diagram
children	ProfileItem
used by	element Distribution
source	<xs:element name="ProfileCells"> <xs:complexType> <xs:sequence> <xs:element ref="ProfileItem" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element>

ProfileItem

diagram

children

CProbability Samplevalue

used by

element ProfileCells

attributes

Name	Type	Use	Default	Fixed	Annotation
Position	xs:NMTOKEN	required

source

<xs:element name="ProfileItem">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="CProbability"/>
      <xs:element ref="Samplevalue"/>
    </xs:sequence>
    <xs:attribute name="Position" use="required">
      <xs:simpleType>
        <xs:restriction base="xs:NMTOKEN">
          <xs:enumeration value="1"/>
          <xs:enumeration value="2"/>
          <xs:enumeration value="3"/>
          <xs:enumeration value="4"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
  </xs:complexType>
</xs:element>

PurposeCode
diagram
type	xs:string
used by	element ResourceItem
source	<xs:element name="PurposeCode" type="xs:string"/>

Randomness
diagram
children	Antithetic AutoChange CurrentStream Distributions RNStream
used by	element SimulationParameters
source	<xs:element name="Randomness"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="Antithetic"/> <xs:element ref="AutoChange"/> <xs:element ref="CurrentStream"/> <xs:element ref="Distributions"/> <xs:element ref="RNStream"/> </xs:choice> </xs:complexType> </xs:element>

RealSpeed
diagram
type	xs:string
used by	element Clock
source	<xs:element name="RealSpeed" type="xs:string"/>

ReferencedDistribution

diagram

type

xs:string

used by

elements

batchsizeoutSampleData changeOverSampleData flowtimeSampleData gaptimeSampleData InterArrivalTimeSampleData LabelActionSampleData MTBFSampleData MTTRSampleData OperationTimeSampleData SampleData

source

<xs:element name="ReferencedDistribution" type="xs:string"/>

ReleaseAs
diagram
type	xs:string
used by	element ResourceItem
source	<xs:element name="ReleaseAs" type="xs:string"/>

Relresources
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Relresources" type="xs:string"/>

Requnits
diagram
type	xs:string
used by	element Link
source	<xs:element name="Requnits" type="xs:string"/>

ResetValue
diagram
type	xs:string
used by	element Variable
source	<xs:element name="ResetValue" type="xs:string"/>

Resource
diagram
type	xs:string
used by	element ResourceItem
source	<xs:element name="Resource" type="xs:string"/>

ResourceItem

diagram

children

Resource ReleaseAs MinNumber MaxNumber TimeSaving PurposeCode HoldOrReleaseCode DisplayOffsetX DisplayOffsetY

used by

element ResourceList

attributes

Name	Type	Use	Default	Fixed	Annotation
Position	xs:string	required

source

<xs:element name="ResourceItem">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="Resource"/>
      <xs:element ref="ReleaseAs"/>
      <xs:element ref="MinNumber"/>
      <xs:element ref="MaxNumber"/>
      <xs:element ref="TimeSaving"/>
      <xs:element ref="PurposeCode"/>
      <xs:element ref="HoldOrReleaseCode"/>
      <xs:element ref="DisplayOffsetX"/>
      <xs:element ref="DisplayOffsetY"/>
    </xs:sequence>
    <xs:attribute name="Position" type="xs:string" use="required"/>
  </xs:complexType>
</xs:element>

ResourceList
diagram
children	ResourceItem
used by	SimulationObject
source	<xs:element name="ResourceList"> <xs:complexType> <xs:sequence> <xs:element ref="ResourceItem" minOccurs="0" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element>

Resourcesfirst
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Resourcesfirst" type="xs:string"/>

ResultItem
diagram
children	ObjectID Code1 Code2 Description Maxlimit Minlimit
used by	element ResultsSummary
source	<xs:element name="ResultItem"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="ObjectID"/> <xs:element ref="Code1"/> <xs:element ref="Code2"/> <xs:element ref="Description"/> <xs:element ref="Maxlimit"/> <xs:element ref="Minlimit"/> </xs:choice> </xs:complexType> </xs:element>

ResultsCollectionPeriod
diagram
type	xs:string
used by	element SimulationParameters
source	<xs:element name="ResultsCollectionPeriod" type="xs:string"/>

ResultsExport
diagram
used by	element SimulationParameters
source	<xs:element name="ResultsExport"> <xs:complexType/> </xs:element>

ResultsInterval
diagram
type	xs:string
used by	element SimulationParameters
source	<xs:element name="ResultsInterval" type="xs:string"/>

ResultsSegLabel
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="ResultsSegLabel" type="xs:string"/>

ResultsSummary
diagram
children	ResultItem
used by	element SimulationParameters
source	<xs:element name="ResultsSummary"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="ResultItem"/> </xs:choice> </xs:complexType> </xs:element>

Right
diagram
type	xs:string
used by	elements location Minposition Position
source	<xs:element name="Right" type="xs:string"/>

RNStream

diagram

children

SubRNStream

used by

element Randomness

attributes

Name	Type	Use	Default	Fixed	Annotation
StreamNumber	xs:string	required

source

<xs:element name="RNStream">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="SubRNStream" maxOccurs="unbounded"/>
    </xs:sequence>
    <xs:attribute name="StreamNumber" type="xs:string" use="required"/>
  </xs:complexType>
</xs:element>

RNSubStream

diagram

type

xs:string

used by

elements

batchsizeoutSampleData changeOverSampleData flowtimeSampleData gaptimeSampleData InterArrivalTimeSampleData LabelActionSampleData MTBFSampleData MTTRSampleData OperationTimeSampleData SampleData

source

<xs:element name="RNSubStream" type="xs:string"/>

RouteInBeforeAlways
diagram
type	xs:string
used by	element SimulationParameters
source	<xs:element name="RouteInBeforeAlways" type="xs:string"/>

RouteLabel
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="RouteLabel" type="xs:string"/>

Routemode
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Routemode" type="xs:string"/>

RouteRNSubStream
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="RouteRNSubStream" type="xs:string"/>

Rows
diagram
type	xs:string
used by	element Variable
source	<xs:element name="Rows" type="xs:string"/>

Runs
diagram
type	xs:string
used by	elements Comparisons Trial
source	<xs:element name="Runs" type="xs:string"/>

S8FileName
diagram
type	xs:string
used by	element FileParameters
source	<xs:element name="S8FileName" type="xs:string"/>

S8FileVersion
diagram
type	xs:string
used by	element FileParameters
source	<xs:element name="S8FileVersion" type="xs:string"/>

S8flags
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="S8flags" type="xs:string"/>

S8L1
diagram
type	xs:string
used by	element S8Licensing
source	<xs:element name="S8L1" type="xs:string"/>

S8L10 >
diagram
type	xs:string
used by	element S8Licensing
source	<xs:element name="S8L10" type="xs:string"/>

S8L2
diagram
type	xs:string
used by	element S8Licensing
source	<xs:element name="S8L2" type="xs:string"/>

S8L3
diagram
type	xs:string
used by	element S8Licensing
source	<xs:element name="S8L3" type="xs:string"/>

S8L4
diagram
type	xs:string
used by	element S8Licensing
source	<xs:element name="S8L4" type="xs:string"/>

S8L5
diagram
type	xs:string
used by	element S8Licensing
source	<xs:element name="S8L5" type="xs:string"/>

S8L6
diagram
type	xs:string
used by	element S8Licensing
source	<xs:element name="S8L6" type="xs:string"/>

S8L7
diagram
type	xs:string
used by	element S8Licensing
source	<xs:element name="S8L7" type="xs:string"/>

S8L8
diagram
type	xs:string
used by	element S8Licensing
source	<xs:element name="S8L8" type="xs:string"/>

S8L9
diagram
type	xs:string
used by	element S8Licensing
source	<xs:element name="S8L9" type="xs:string"/>

S8Licensing
diagram
children	S8L1 S8L2 S8L3 S8L9 S8L4 S8L5 S8L6 S8L7 S8L10 S8L8
used by	element FileParameters
source	<xs:element name="S8Licensing"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="S8L1"/> <xs:element ref="S8L2"/> <xs:element ref="S8L3"/> <xs:element ref="S8L9"/> <xs:element ref="S8L4"/> <xs:element ref="S8L5"/> <xs:element ref="S8L6"/> <xs:element ref="S8L7"/> <xs:element ref="S8L10"/> <xs:element ref="S8L8"/> </xs:choice> </xs:complexType> </xs:element>

S8ObjectType
diagram
type	xs:string
used by	element Link
source	<xs:element name="S8ObjectType" type="xs:string"/>

S8SaveFlags
diagram
type	xs:string
used by	element FileParameters
source	<xs:element name="S8SaveFlags" type="xs:string"/>

S8sparei
diagram
type	xs:string
used by	element Link
source	<xs:element name="S8sparei" type="xs:string"/>

S8TheType
diagram
type	xs:string
used by	element Link
source	<xs:element name="S8TheType" type="xs:string"/>

SampleData
diagram
children	DistribType Userates DistParam1 DistParam2 DistParam3 DistParam4 RNSubStream ReferencedDistribution DistParam1Calc DistParam2Calc DistParam3Calc DistParam4Calc
used by	element Distribution
source	<xs:element name="SampleData"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="DistribType"/> <xs:element ref="Userates"/> <xs:element ref="DistParam1"/> <xs:element ref="DistParam2"/> <xs:element ref="DistParam3"/> <xs:element ref="DistParam4"/> <xs:element ref="RNSubStream"/> <xs:element ref="ReferencedDistribution"/> <xs:element ref="DistParam1Calc"/> <xs:element ref="DistParam2Calc"/> <xs:element ref="DistParam3Calc"/> <xs:element ref="DistParam4Calc"/> </xs:choice> </xs:complexType> </xs:element>

Samplevalue
diagram
type	xs:string
used by	element ProfileItem
source	<xs:element name="Samplevalue" type="xs:string"/>

Scale
diagram
type	xs:string
used by	element SIMUL8Window
source	<xs:element name="Scale" type="xs:string"/>

Scaleauto
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Scaleauto" type="xs:string"/>

Scalemax
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Scalemax" type="xs:string"/>

Scalemin
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Scalemin" type="xs:string"/>

ScaleX
diagram
type	xs:string
used by	element DisplayData
source	<xs:element name="ScaleX" type="xs:string"/>

ScaleY
diagram
type	xs:string
used by	element DisplayData
source	<xs:element name="ScaleY" type="xs:string"/>

ScaleZ
diagram
type	xs:string
used by	element DisplayData
source	<xs:element name="ScaleZ" type="xs:string"/>

ScreenPixels
diagram
type	xs:string
used by	elements AdditionalSegment TravelLink
source	<xs:element name="ScreenPixels" type="xs:string"/>

SDTimeSlice
diagram
type	xs:string
used by	element SimulationParameters
source	<xs:element name="SDTimeSlice" type="xs:string"/>

Seed
diagram
type	xs:string
used by	element SubRNStream
source	<xs:element name="Seed" type="xs:string"/>

SendToVISA
diagram
type	xs:string
used by	element Trial
source	<xs:element name="SendToVISA" type="xs:string"/>

ShelfLifeLabel
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="ShelfLifeLabel" type="xs:string"/>

Shifts
diagram
used by	element SimulationParameters
source	<xs:element name="Shifts"> <xs:complexType/> </xs:element>

ShiftsPerDay
diagram
type	xs:string
used by	element Clock
source	<xs:element name="ShiftsPerDay" type="xs:string"/>

ShiftsPerWeek
diagram
type	xs:string
used by	element Clock
source	<xs:element name="ShiftsPerWeek" type="xs:string"/>

ShowAllLinks
diagram
type	xs:string
used by	element Environment
source	<xs:element name="ShowAllLinks" type="xs:string"/>

Showaswiz
diagram
type	xs:string
used by	element Dialog
source	<xs:element name="Showaswiz" type="xs:string"/>

Showcount

diagram

type

xs:string

used by

elements

source

<xs:element name="Showcount" type="xs:string"/>

ShowCycleMatrixAnimation
diagram
type	xs:string
used by	element Environment
source	<xs:element name="ShowCycleMatrixAnimation" type="xs:string"/>

Showimage

diagram

type

xs:string

used by

elements

source

<xs:element name="Showimage" type="xs:string"/>

Showmylinks
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Showmylinks" type="xs:string"/>

ShowTimeBasedAnimation


diagram
type	xs:string
used by	element Environment
source	<xs:element name="ShowTimeBasedAnimation" type="xs:string"/>

ShowTitle


diagram
type	xs:string
used by	element FileParameters
source	<xs:element name="ShowTitle" type="xs:string"/>

Showtitle

diagram

type

xs:string

used by

elements

source

<xs:element name="Showtitle" type="xs:string"/>

Showworkitem

diagram

type

xs:string

used by

elements

source

<xs:element name="Showworkitem" type="xs:string"/>

ShowZeroTimeAnimation


diagram
type	xs:string
used by	element Environment
source	<xs:element name="ShowZeroTimeAnimation" type="xs:string"/>

SimObject


diagram
type	xs:string
used by	element Variable
source	<xs:element name="SimObject" type="xs:string"/>

SIMUL8Window

diagram

children

OpenState Scale Minposition Position Showtitle SolutionXML Bgcolor DrawObjects Invisible

used by

element WindowObjects

attributes

Name	Type	Use	Default	Fixed	Annotation
Name	xs:string	required
ID	xs:string	required

source

<xs:element name="SIMUL8Window">
  <xs:complexType mixed="true">
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <xs:element ref="OpenState"/>
      <xs:element ref="Scale"/>
      <xs:element ref="Minposition"/>
      <xs:element ref="Position"/>
      <xs:element ref="Showtitle"/>
      <xs:element ref="SolutionXML"/>
      <xs:element ref="Bgcolor"/>
      <xs:element ref="DrawObjects"/>
      <xs:element ref="Invisible"/>
    </xs:choice>
    <xs:attribute name="Name" type="xs:string" use="required"/>
    <xs:attribute name="ID" type="xs:string" use="required"/>
  </xs:complexType>
</xs:element>

SIMUL8XML
diagram
children	SimulationParameters Environment SimulationObjects LogicObjects GraphicsObjects FileParameters
source	<xs:element name="SIMUL8XML"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="SimulationParameters"/> <xs:element ref="Environment"/> <xs:element ref="SimulationObjects"/> <xs:element ref="LogicObjects"/> <xs:element ref="GraphicsObjects"/> <xs:element ref="FileParameters"/> </xs:choice> </xs:complexType> </xs:element>

SimulationAssistant
diagram
children	Model_warm_up_set Noadvice Traveltime_changed
used by	element Environment
source	<xs:element name="SimulationAssistant"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="Model_warm_up_set"/> <xs:element ref="Noadvice"/> <xs:element ref="Traveltime_changed"/> </xs:choice> </xs:complexType> </xs:element>

SimulationObject

diagram

children

SolutionXML OEM_XML Extra_type_info Index Notes Window DisplayData InputList OutputList Groups Showmylinks Maxconts MaxConts PriorityMode Collectresults Priority Relresources RouteRNSubStream InputRequiredOnOutput IgnoreBlockedRoutes IgnoreStarvedRoutes Preference_route Routemode InRoutemode Young_Old_UseQueueTime Collect_wait_all Resourcesfirst Maxattbat Minattbat HighVol HVbatch Matchatt Attbat Prod_type_att S8flags Fixed_prod_type TimingStyle TISmode Collect_assemble OperationTimeSampleData flowtimeSampleData gaptimeSampleData HideLostWarning InterArrivalTimeSampleData batchsizeoutSampleData BreakDowns LogicRNSubStream InitialConts ExitWorkType Lastroute Foundroute RouteLabel PriorityLabel IndexingGroup LabelActions Conv_length Conv_speed Data_update_time Pref_shifted_random_route Lock_display_length Disp_width Accumulating AllowGaps Stat_high Stat_low Call_VisualLogic_Actioncode Everyresult WorkItemImage InterruptonStorage Finance changeOverSampleData ChangeOverLabel ChangeOverStyle Work_time_between_setups Check_exit_clear_routein Wait_for_interval ShelfLifeLabel Include_label_display LIFO Highvol Uselimit Expiretime ResultsSegLabel Scaleauto Scalemax Scalemin Percent_limit FirstatZero Unlimited Min_wait_timeCalc DisplayWithWorkX DisplayWithWorkY ComponentData Firstchild Hidesubs Hidemain Basefilename Textp Others_diag Opendirect UseDialogOfObject ResourceList PoolMembers Call_VisualLogic_Work_complete_code Call_VisualLogic_Route_in_before_code

used by

SimulationObject

attributes

Name	Type	Use	Default	Fixed	Annotation
Name	xs:string	required
Type	xs:string	required
ID	xs:string	required

source

<xs:element name="SimulationObject">
  <xs:complexType mixed="true">
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <xs:element ref="SolutionXML"/>
      <xs:element ref="OEM_XML"/>
      <xs:element ref="Extra_type_info"/>
      <xs:element ref="Index"/>
      <xs:element ref="Notes"/>
      <xs:element ref="Window"/>
      <xs:element ref="DisplayData"/>
      <xs:element ref="InputList"/>
      <xs:element ref="OutputList"/>
      <xs:element ref="Groups"/>
      <xs:element ref="Showmylinks"/>
      <xs:element ref="Maxconts"/>
      <xs:element ref="MaxConts"/>
      <xs:element ref="PriorityMode"/>
      <xs:element ref="Collectresults"/>
      <xs:element ref="Priority"/>
      <xs:element ref="Relresources"/>
      <xs:element ref="RouteRNSubStream"/>
      <xs:element ref="InputRequiredOnOutput"/>
      <xs:element ref="RouteRNSubStream"/>
      <xs:element ref="IgnoreBlockedRoutes"/>
      <xs:element ref="IgnoreStarvedRoutes"/>
      <xs:element ref="Preference_route"/>
      <xs:element ref="Routemode"/>
      <xs:element ref="InRoutemode"/>
      <xs:element ref="Young_Old_UseQueueTime"/>
      <xs:element ref="Collect_wait_all"/>
      <xs:element ref="Resourcesfirst"/>
      <xs:element ref="Maxattbat"/>
      <xs:element ref="Minattbat"/>
      <xs:element ref="HighVol"/>
      <xs:element ref="HVbatch"/>
      <xs:element ref="Matchatt"/>
      <xs:element ref="Attbat"/>
      <xs:element ref="Prod_type_att"/>
      <xs:element ref="S8flags"/>
      <xs:element ref="Fixed_prod_type"/>
      <xs:element ref="TimingStyle"/>
      <xs:element ref="TISmode"/>
      <xs:element ref="Collect_assemble"/>
      <xs:element ref="OperationTimeSampleData"/>
      <xs:element ref="flowtimeSampleData"/>
      <xs:element ref="flowtimeSampleData"/>
      <xs:element ref="gaptimeSampleData"/>
      <xs:element ref="HideLostWarning"/>
      <xs:element ref="InterArrivalTimeSampleData"/>
      <xs:element ref="batchsizeoutSampleData"/>
      <xs:element ref="BreakDowns"/>
      <xs:element ref="LogicRNSubStream"/>
      <xs:element ref="flowtimeSampleData"/>
      <xs:element ref="gaptimeSampleData"/>
      <xs:element ref="InitialConts"/>
      <xs:element ref="ExitWorkType"/>
      <xs:element ref="Lastroute"/>
      <xs:element ref="Foundroute"/>
      <xs:element ref="RouteLabel"/>
      <xs:element ref="PriorityLabel"/>
      <xs:element ref="IndexingGroup"/>
      <xs:element ref="LabelActions"/>
      <xs:element ref="Conv_length"/>
      <xs:element ref="Conv_speed"/>
      <xs:element ref="Data_update_time"/>
      <xs:element ref="Pref_shifted_random_route"/>
      <xs:element ref="Lock_display_length"/>
      <xs:element ref="Disp_width"/>
      <xs:element ref="Accumulating"/>
      <xs:element ref="AllowGaps"/>
      <xs:element ref="Stat_high"/>
      <xs:element ref="Stat_low"/>
      <xs:element ref="Call_VisualLogic_Actioncode"/>
      <xs:element ref="Everyresult"/>
      <xs:element ref="WorkItemImage"/>
      <xs:element ref="InterruptonStorage"/>
      <xs:element ref="Finance"/>
      <xs:element ref="changeOverSampleData"/>
      <xs:element ref="ChangeOverLabel"/>
      <xs:element ref="ChangeOverStyle"/>
      <xs:element ref="Work_time_between_setups"/>
      <xs:element ref="Check_exit_clear_routein"/>
      <xs:element ref="Wait_for_interval"/>
      <xs:element ref="RouteRNSubStream"/>
      <xs:element ref="IgnoreBlockedRoutes"/>
      <xs:element ref="Preference_route"/>
      <xs:element ref="Routemode"/>
      <xs:element ref="Lastroute"/>
      <xs:element ref="Foundroute"/>
      <xs:element ref="RouteLabel"/>
      <xs:element ref="BreakDowns"/>
      <xs:element ref="LogicRNSubStream"/>
      <xs:element ref="LabelActions"/>
      <xs:element ref="ShelfLifeLabel"/>
      <xs:element ref="Include_label_display"/>
      <xs:element ref="HighVol"/>
      <xs:element ref="LIFO"/>
      <xs:element ref="Everyresult"/>
      <xs:element ref="Highvol"/>
      <xs:element ref="Uselimit"/>
      <xs:element ref="LabelActions"/>
      <xs:element ref="Expiretime"/>
      <xs:element ref="ResultsSegLabel"/>
      <xs:element ref="Scaleauto"/>
      <xs:element ref="Scalemax"/>
      <xs:element ref="Scalemin"/>
      <xs:element ref="Percent_limit"/>
      <xs:element ref="Finance"/>
      <xs:element ref="FirstatZero"/>
      <xs:element ref="Unlimited"/>
      <xs:element ref="changeOverSampleData"/>
      <xs:element ref="ChangeOverLabel"/>
      <xs:element ref="ChangeOverStyle"/>
      <xs:element ref="Work_time_between_setups"/>
      <xs:element ref="Check_exit_clear_routein"/>
      <xs:element ref="Wait_for_interval"/>
      <xs:element ref="InitialConts"/>
      <xs:element ref="ExitWorkType"/>
      <xs:element ref="PriorityLabel"/>
      <xs:element ref="ShelfLifeLabel"/>
      <xs:element ref="Include_label_display"/>
      <xs:element ref="HighVol"/>
      <xs:element ref="LIFO"/>
      <xs:element ref="Everyresult"/>
      <xs:element ref="LabelActions"/>
      <xs:element ref="Expiretime"/>
      <xs:element ref="Min_wait_timeCalc"/>
      <xs:element ref="DisplayWithWorkX"/>
      <xs:element ref="DisplayWithWorkY"/>
      <xs:element ref="ComponentData"/>
      <xs:element ref="Firstchild"/>
      <xs:element ref="Hidesubs"/>
      <xs:element ref="Hidemain"/>
      <xs:element ref="Basefilename"/>
      <xs:element ref="Textp"/>
      <xs:element ref="Others_diag"/>
      <xs:element ref="Opendirect"/>
      <xs:element ref="UseDialogOfObject"/>
      <xs:element ref="ResourceList"/>
      <xs:element ref="PoolMembers"/>
      <xs:element ref="ResultsSegLabel"/>
      <xs:element ref="Call_VisualLogic_Work_complete_code"/>
      <xs:element ref="Call_VisualLogic_Route_in_before_code"/>
    </xs:choice>
    <xs:attribute name="Name" type="xs:string" use="required"/>
    <xs:attribute name="Type" type="xs:string" use="required"/>
    <xs:attribute name="ID" type="xs:string" use="required"/>
  </xs:complexType>
</xs:element>

SimulationObjects
diagram
children	Label WorkTypes Groups CycleMatrix SimulationObject Travel
used by	element SIMUL8XML
source	<xs:element name="SimulationObjects"> <xs:complexType> <xs:sequence> <xs:element ref="Label" minOccurs="0" maxOccurs="unbounded"/> <xs:element ref="WorkTypes" minOccurs="0" maxOccurs="unbounded"/> <xs:element ref="Groups" minOccurs="0" maxOccurs="unbounded"/> <xs:element ref="CycleMatrix" minOccurs="0" maxOccurs="unbounded"/> <xs:element ref="SimulationObject" minOccurs="0" maxOccurs="unbounded"/> <xs:element ref="Travel" minOccurs="0" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element>

SimulationParameters
diagram
children	Trial Units IgnoreLargeBatchWarnings ResultsCollectionPeriod BeepOnComplete RouteInBeforeAlways V4ActionSeq AllowResourceHolding Randomness Warmuptime Finance Shifts ResultsInterval SDTimeSlice ResultsSummary ResultsExport DetailedResultsLog Comparisons
used by	element SIMUL8XML
source	<xs:element name="SimulationParameters"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="Trial"/> <xs:element ref="Units"/> <xs:element ref="IgnoreLargeBatchWarnings"/> <xs:element ref="ResultsCollectionPeriod"/> <xs:element ref="BeepOnComplete"/> <xs:element ref="RouteInBeforeAlways"/> <xs:element ref="V4ActionSeq"/> <xs:element ref="AllowResourceHolding"/> <xs:element ref="Randomness"/> <xs:element ref="Warmuptime"/> <xs:element ref="Finance"/> <xs:element ref="Shifts"/> <xs:element ref="ResultsInterval"/> <xs:element ref="SDTimeSlice"/> <xs:element ref="ResultsSummary"/> <xs:element ref="ResultsExport"/> <xs:element ref="DetailedResultsLog"/> <xs:element ref="Comparisons"/> </xs:choice> </xs:complexType> </xs:element>

Speed
diagram
type	xs:string
used by	element Clock
source	<xs:element name="Speed" type="xs:string"/>

SpreadFormat
diagram
type	xs:string
used by	element Variable
source	<xs:element name="SpreadFormat" type="xs:string"/>

StartLocation
diagram
children	X Y
used by	element TravelLink
source	<xs:element name="StartLocation"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="X"/> <xs:element ref="Y"/> </xs:choice> </xs:complexType> </xs:element>

StartOfDay
diagram
type	xs:string
used by	element Clock
source	<xs:element name="StartOfDay" type="xs:string"/>

Stat_high
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Stat_high" type="xs:string"/>

Stat_low
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Stat_low" type="xs:string"/>

SolutionXML
diagram
used by	elements SIMUL8Window SimulationObject
source	<xs:element name="SolutionXML"> <xs:complexType mixed="true"/> </xs:element>

StopInputQueue
diagram
type	xs:string
used by	element BreakDowns
source	<xs:element name="StopInputQueue" type="xs:string"/>

StopworkImmediate
diagram
type	xs:string
used by	element BreakDowns
source	<xs:element name="StopworkImmediate" type="xs:string"/>

Style
diagram
type	xs:string
used by	element Clock
source	<xs:element name="Style" type="xs:string"/>

Submode2
diagram
type	xs:string
used by	Distribution
source	<xs:element name="Submode2" type="xs:string"/>

Submode3
diagram
type	xs:string
used by	Distribution
source	<xs:element name="Submode3" type="xs:string"/>

Submode4
diagram
type	xs:string
used by	Distribution
source	<xs:element name="Submode4" type="xs:string"/>

SubRNStream

diagram

children

Seed

used by

element RNStream

attributes

Name	Type	Use	Default	Fixed	Annotation
ID	xs:string	required

source

<xs:element name="SubRNStream">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="Seed"/>
    </xs:sequence>
    <xs:attribute name="ID" type="xs:string" use="required"/>
  </xs:complexType>
</xs:element>

Submode1
diagram
type	xs:string
used by	Distribution
source	<xs:element name="Submode1" type="xs:string"/>

SwimLaneHeight
diagram
type	xs:string
used by	element Group
source	<xs:element name="SwimLaneHeight" type="xs:string"/>

Text
diagram
type	xs:string
used by	elements Clock DialogItem
source	<xs:element name="Text" type="xs:string"/>

Textp
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Textp" type="xs:string"/>

TextValue
diagram
type	xs:string
used by	element LabelAction
source	<xs:element name="TextValue" type="xs:string"/>

Thetext
diagram
type	xs:string
used by	element DrawObject
source	<xs:element name="Thetext" type="xs:string"/>

Thevar
diagram
type	xs:string
used by	element DrawObject
source	<xs:element name="Thevar" type="xs:string"/>

element Time
diagram
type	xs:string
used by	element Units
source	<xs:element name="Time" type="xs:string"/>

TimeCost
diagram
type	xs:string
used by	element Finance
source	<xs:element name="TimeCost" type="xs:string"/>

TimeSaving
diagram
type	xs:string
used by	element ResourceItem
source	<xs:element name="TimeSaving" type="xs:string"/>

TimingStyle
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="TimingStyle" type="xs:string"/>

TISmode
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="TISmode" type="xs:string"/>

Title
diagram
type	xs:string
used by	elements FileParameters Trial
source	<xs:element name="Title" type="xs:string"/>

TitleOffsetX

diagram

type

xs:string

used by

elements

source

<xs:element name="TitleOffsetX" type="xs:string"/>

TitleOffsetY

diagram

type

xs:string

used by

elements

source

<xs:element name="TitleOffsetY" type="xs:string"/>

TitleWidth

diagram

type

xs:string

used by

elements

source

<xs:element name="TitleWidth" type="xs:string"/>

ToObject
diagram
type	xs:string
used by	element DetailedLog
source	<xs:element name="ToObject" type="xs:string"/>

Top
diagram
type	xs:string
used by	elements location Minposition Position
source	<xs:element name="Top" type="xs:string"/>

ToSimulationObject
diagram
type	xs:string
used by	element TravelLink
source	<xs:element name="ToSimulationObject" type="xs:string"/>

ToUseEntryTime
diagram
type	xs:string
used by	element DetailedLog
source	<xs:element name="ToUseEntryTime" type="xs:string"/>

Trace
diagram
type	xs:string
used by	Distribution
source	<xs:element name="Trace" type="xs:string"/>

Transitlink
diagram
type	xs:string
used by	element Link
source	<xs:element name="Transitlink" type="xs:string"/>

Transparent
diagram
type	xs:string
used by	element Image
source	<xs:element name="Transparent" type="xs:string"/>

TransparentColor
diagram
type	xs:string
used by	element Image
source	<xs:element name="TransparentColor" type="xs:string"/>

Travel
diagram
children	InterObjectTravel
used by	SimulationObject
source	<xs:element name="Travel"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="InterObjectTravel"/> </xs:choice> </xs:complexType> </xs:element>

TravelLink

diagram

children

TravelTime ScreenPixels FromSimulationObject ToSimulationObject Window StartLocation AdditionalSegment

used by

element InterObjectTravel

attributes

Name	Type	Use	Default	Fixed	Annotation
ID	xs:string	required

source

<xs:element name="TravelLink">
  <xs:complexType mixed="true">
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <xs:element ref="TravelTime"/>
      <xs:element ref="ScreenPixels"/>
      <xs:element ref="FromSimulationObject"/>
      <xs:element ref="ToSimulationObject"/>
      <xs:element ref="Window"/>
      <xs:element ref="StartLocation"/>
      <xs:element ref="AdditionalSegment"/>
    </xs:choice>
    <xs:attribute name="ID" type="xs:string" use="required"/>
  </xs:complexType>
</xs:element>

TravelTime
diagram
type	xs:string
used by	element TravelLink
source	<xs:element name="TravelTime" type="xs:string"/>

Traveltime_changed
diagram
type	xs:string
used by	element SimulationAssistant
source	<xs:element name="Traveltime_changed" type="xs:string"/>

Trial
diagram
children	Title Runs SendToVISA
used by	element SimulationParameters
source	<xs:element name="Trial"> <xs:complexType> <xs:sequence> <xs:element ref="Title"/> <xs:element ref="Runs"/> <xs:element ref="SendToVISA"/> </xs:sequence> </xs:complexType> </xs:element>

Trials
diagram
type	xs:string
used by	element Comparisons
source	<xs:element name="Trials" type="xs:string"/>

TrialsAverage
diagram
type	xs:string
used by	element Comparisons
source	<xs:element name="TrialsAverage" type="xs:string"/>

Typecode
diagram
type	xs:string
used by	element DrawObject
source	<xs:element name="Typecode" type="xs:string"/>

UnitCost
diagram
type	xs:string
used by	element Finance
source	<xs:element name="UnitCost" type="xs:string"/>

Units
diagram
children	Distance Time Flow_units_text Flow_units_text2
used by	element SimulationParameters
source	<xs:element name="Units"> <xs:complexType> <xs:sequence> <xs:element ref="Distance"/> <xs:element ref="Time"/> <xs:element ref="Flow_units_text"/> <xs:element ref="Flow_units_text2"/> </xs:sequence> </xs:complexType> </xs:element>

Unlimited
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Unlimited" type="xs:string"/>

UpperBound
diagram
type	xs:string
used by	element Distribution
source	<xs:element name="UpperBound" type="xs:string"/>

URL
diagram
type	xs:string
used by	element DrawObject
source	<xs:element name="URL" type="xs:string"/>

UseDialogOfObject
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="UseDialogOfObject" type="xs:string"/>

Uselimit
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Uselimit" type="xs:string"/>

Userates

diagram

type

xs:string

used by

elements

batchsizeoutSampleData changeOverSampleData flowtimeSampleData gaptimeSampleData InterArrivalTimeSampleData LabelActionSampleData MTBFSampleData MTTRSampleData OperationTimeSampleData SampleData

source

<xs:element name="Userates" type="xs:string"/>

Usevba
diagram
type	xs:string
used by	element ExternalLinks
source	<xs:element name="Usevba" type="xs:string"/>

V4ActionSeq
diagram
type	xs:string
used by	element SimulationParameters
source	<xs:element name="V4ActionSeq" type="xs:string"/>

Value
diagram
type	xs:string
used by	element Variable
source	<xs:element name="Value" type="xs:string"/>

Variable

diagram

children

Value ResetValue SpreadFormat Cell Rows Cols SimObject

used by

element LogicObjects

attributes

Name	Type	Use	Default	Fixed	Annotation
Name	xs:string	required
ID	xs:string	required
Type	xs:string	required

source

<xs:element name="Variable">
  <xs:complexType mixed="true">
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <xs:element ref="Value"/>
      <xs:element ref="ResetValue"/>
      <xs:element ref="SpreadFormat"/>
      <xs:element ref="Cell"/>
      <xs:element ref="Rows"/>
      <xs:element ref="Cols"/>
      <xs:element ref="SimObject"/>
    </xs:choice>
    <xs:attribute name="Name" type="xs:string" use="required"/>
    <xs:attribute name="ID" type="xs:string" use="required"/>
    <xs:attribute name="Type" type="xs:string" use="required"/>
  </xs:complexType>
</xs:element>

Vbxmin
diagram
type	xs:string
used by	element ExternalLinks
source	<xs:element name="Vbxmin" type="xs:string"/>

Vbxtimeint
diagram
type	xs:string
used by	element ExternalLinks
source	<xs:element name="Vbxtimeint" type="xs:string"/>

Vbxtimestart
diagram
type	xs:string
used by	element ExternalLinks
source	<xs:element name="Vbxtimestart" type="xs:string"/>

VisioMaxY
diagram
type	xs:string
used by	element GraphicsObjects
source	<xs:element name="VisioMaxY" type="xs:string"/>

VisioPixelsPerUnit
diagram
type	xs:string
used by	element GraphicsObjects
source	<xs:element name="VisioPixelsPerUnit" type="xs:string"/>

VL
diagram
type	xs:string
used by	element LogicSection
source	<xs:element name="VL" type="xs:string"/>

Vr_imagename
diagram
type	xs:string
used by	element DisplayData
source	<xs:element name="Vr_imagename" type="xs:string"/>

VR_x
diagram
type	xs:string
used by	element DisplayData
source	<xs:element name="VR_x" type="xs:string"/>

VR_y
diagram
type	xs:string
used by	element DisplayData
source	<xs:element name="VR_y" type="xs:string"/>

VR_z
diagram
type	xs:string
used by	element DisplayData
source	<xs:element name="VR_z" type="xs:string"/>

Wait_for_interval
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Wait_for_interval" type="xs:string"/>

Warmuptime
diagram
type	xs:string
used by	element SimulationParameters
source	<xs:element name="Warmuptime" type="xs:string"/>

Width
diagram
type	xs:string
used by	element Image
source	<xs:element name="Width" type="xs:string"/>

Window
diagram
type	xs:string
used by	elements SimulationObject TravelLink
source	<xs:element name="Window" type="xs:string"/>

WindowObjects
diagram
children	MainTop MainWidth MainHeight SIMUL8Window
used by	element GraphicsObjects
source	<xs:element name="WindowObjects"> <xs:complexType mixed="true"> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element ref="MainTop"/> <xs:element ref="MainWidth"/> <xs:element ref="MainHeight"/> <xs:element ref="SIMUL8Window"/> </xs:choice> </xs:complexType> </xs:element>

Work_time_between_setups
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Work_time_between_setups" type="xs:string"/>

WorkItemImage
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="WorkItemImage" type="xs:string"/>

WorkItemLimit
diagram
type	xs:string
used by	element Group
source	<xs:element name="WorkItemLimit" type="xs:string"/>

WorkItemType

diagram

children

Length Label Image0

used by

element WorkTypes

attributes

Name	Type	Use	Default	Fixed	Annotation
Name	xs:string	required
ID	xs:string	required

source

<xs:element name="WorkItemType">
  <xs:complexType mixed="true">
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <xs:element ref="Length"/>
      <xs:element ref="Label"/>
      <xs:element ref="Image0"/>
    </xs:choice>
    <xs:attribute name="Name" type="xs:string" use="required"/>
    <xs:attribute name="ID" type="xs:string" use="required"/>
  </xs:complexType>
</xs:element>

WorkTypes
diagram
children	WorkItemType
used by	SimulationObject
source	<xs:element name="WorkTypes"> <xs:complexType> <xs:sequence> <xs:element ref="WorkItemType" minOccurs="0" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element>

X
diagram
type	xs:string
used by	elements EndLocation StartLocation
source	<xs:element name="X" type="xs:string"/>

diagram

type

xs:string

used by

elements

source

<xs:element name="X1" type="xs:string"/>

diagram

type

xs:string

used by

elements

source

<xs:element name="X2" type="xs:string"/>

Xinc

diagram

type

xs:string

used by

elements

source

<xs:element name="Xinc" type="xs:string"/>

Xlxcell
diagram
type	xs:string
used by	element ExternalLinks
source	<xs:element name="Xlxcell" type="xs:string"/>

Xlxcellsheet
diagram
type	xs:string
used by	element ExternalLinks
source	<xs:element name="Xlxcellsheet" type="xs:string"/>

Y
diagram
type	xs:string
used by	elements EndLocation StartLocation
source	<xs:element name="Y" type="xs:string"/>

diagram

type

xs:string

used by

elements

source

<xs:element name="Y1" type="xs:string"/>

diagram

type

xs:string

used by

elements

source

<xs:element name="Y2" type="xs:string"/>

Yinc

diagram

type

xs:string

used by

elements

source

<xs:element name="Yinc" type="xs:string"/>

Young_Old_UseQueueTime
diagram
type	xs:string
used by	SimulationObject
source	<xs:element name="Young_Old_UseQueueTime" type="xs:string"/>
